Brand:

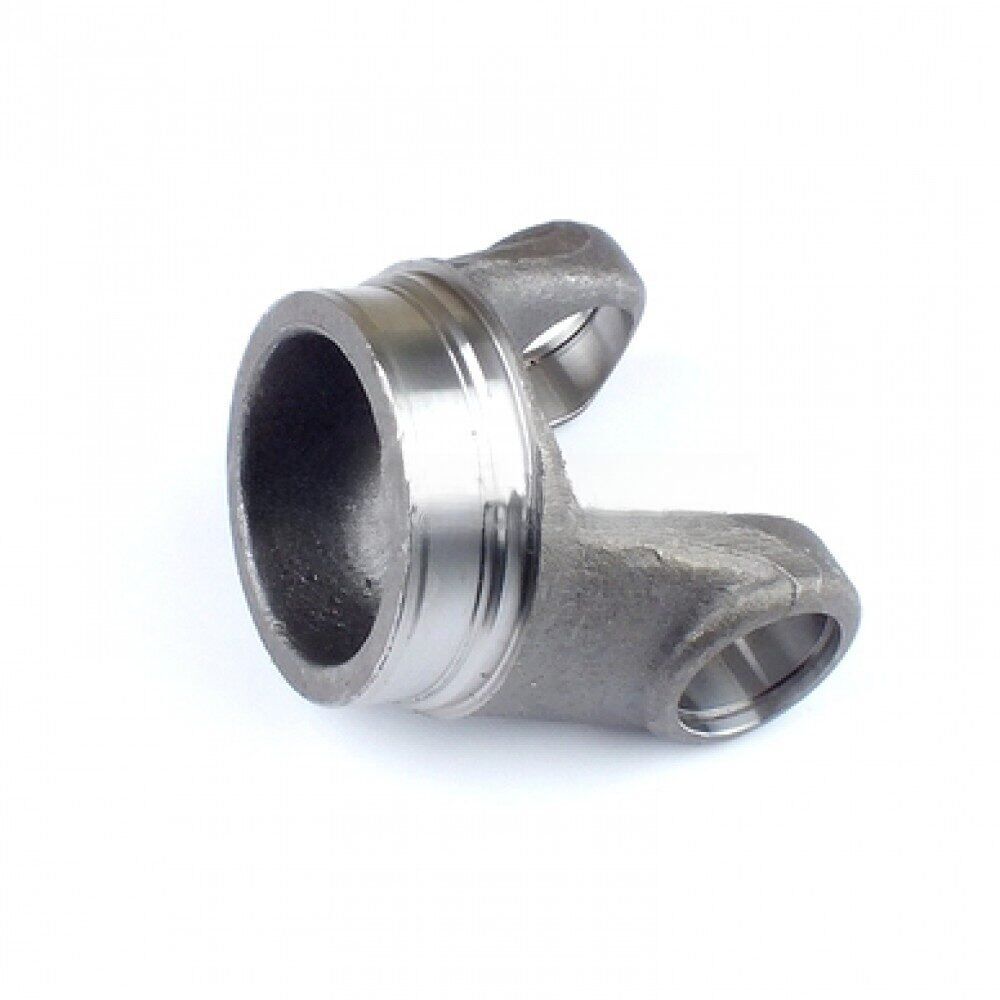

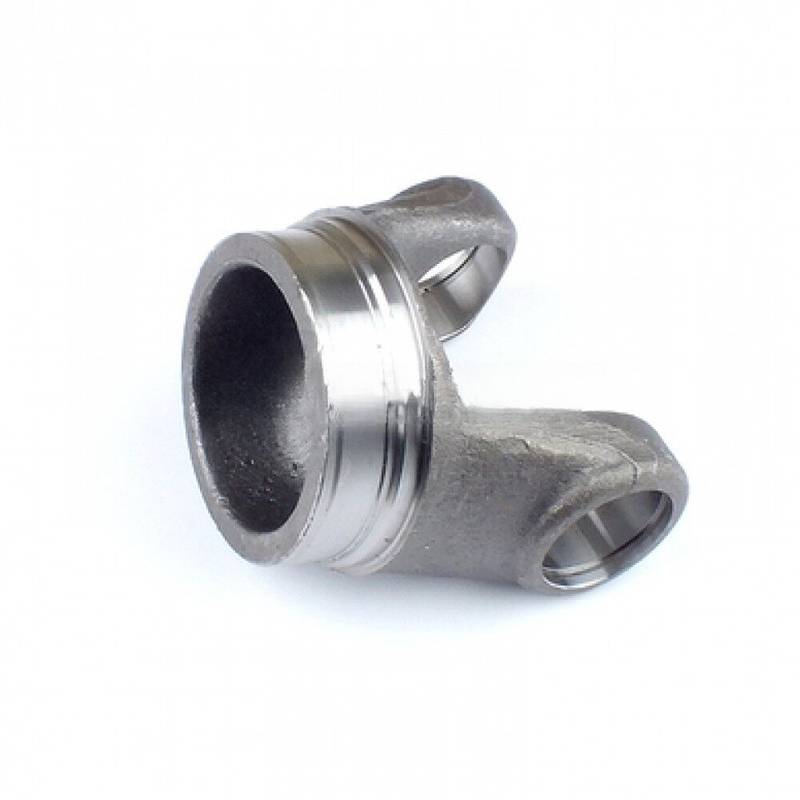

2687354000100 WELD YOKE 68735 / 2035 Series Weld Yoke – 100 x 3 mm
$58.51
22 in stock
15
People watching this product now!
Description
Weld yoke TY68735U, 68735. fits 3.937 X 0.118 tube | 94.25″ butt dia | 90″ center-to-weld. Tube OD must match butt diameter.
Full Description
Weld yoke fit is determined by tube OD. The TY68735U is machined to accept a specific tube diameter -- butt it up, get it square, weld it. That simple, that exacting.
TY68735U Weld Yoke -- Dimensions & Fitment
The TY68735U weld yoke: fits 3.937 X 0.118 tube | 94.25" butt dia | 90" center-to-weld.
Steel DOM-compatible -- standard weld prep, full-penetration weld recommended. Center-to-weld dimension determines how much of your total shaft length is consumed by this end.
Key Features
- Series: 68735 -- application-specific
- Tube fit: 3.937 X 0.118 -- butt diameter machined to this tube OD only
- Butt diameter: 94.25" -- slides over tube OD for weld prep
- Center-to-weld: 90" -- factors into overall driveshaft length calculation
- Steel construction -- standard weld-compatible material
Specifications
- SKU: TY68735U
- Brand: UDS
- Series: 68735
- Material: Steel
- Tube Dia x Wall: 3.937 X 0.118
- Butt Dia: 94.25"
- Center UJ to Weld: 90"
Additional information
| Brand |
UDS |
|---|---|
| Butt dia |
94.25 |
| Center u j to weld |
90 |
| Material |
STEEL |
| Partn number |
2687354000100 |
| Tube dia wall |
3.937 X 0.118 |
| Series |
68735 |
