SA1480-395 Slip Assembly 1480 / 68730 Series Reverse Slip Joint 9.7″ – REVERSIBLE ASSEMBLY UDS
$155.09
22 in stock
18
People watching this product now!
Description
SA1480-395 UDS 1480/68730 series reversible slip assembly. 30-spline, 1.875″ dia, CL-to-weld 9.750″, steel. Verify spline count and diameter against mating shaft.
Full Description

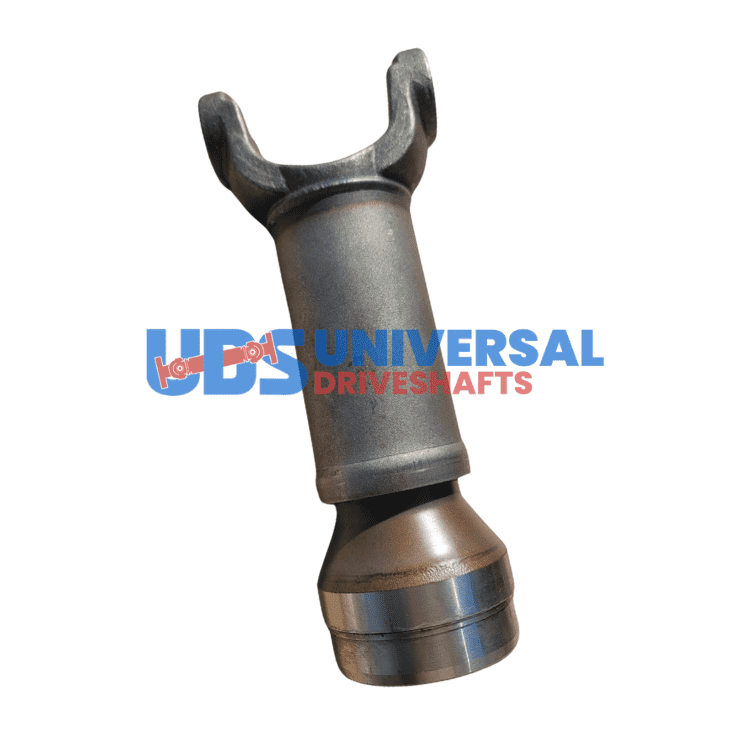

SA1480-395 UDS 1480 Series Reversible Slip Assembly – 30-Spline 1.875" Diameter
The SA1480-395 is a UDS 1480 / 68730 series reversible slip assembly in steel construction. The spline count is 30 with a spline diameter of 1.875". The centerline-to-weld dimension is 9.750". This is a reverse slip joint configuration designed for reversible assembly orientation.
Specifications
- Part Number: SA1480-395
- Brand: UDS
- Series: 1480 / 68730
- Spline Count: 30
- Spline Diameter: 1.875"
- CL to Weld: 9.750"
- Material: Steel
- Style: Reversible Assembly
When fitting the SA1480-395, the mating slip yoke or stub must have a 30-spline, 1.875" diameter bore. The 9.750" centerline-to-weld dimension determines how this assembly positions within the driveshaft tube assembly — verify this measurement against the driveshaft build specification before welding. The reversible design allows orientation flexibility during assembly.
The 1480 series (also referenced as 68730) is a heavy-duty truck driveline designation with higher torque capacity than 1410 series. Confirm that both the front and rear yoke connections are rated for 1480 series before completing the driveshaft assembly. Verify spline count and diameter against the connected shaft before installation.
Additional information
| Brand | UDS |
|---|---|
| Series | 1480 |
| Splines count | 30 |
| Splines dia | 1.875 |
| Notes | CL to Weld: 9.750″ |
| Material | STEEL |
| Partn number | SA1480-395 |
