SA1480-3595 Splined Sleeve – Fits 3.500 x 0.095 1480 Series Slip Assembly 1480 / 68730 Series Reverse Slip Joint 9.7″ – REVERSIBLE ASSEMBLY UDS
$161.30
20 in stock
12
People watching this product now!
Description
SA1480-3595 UDS 1480 series splined sleeve for 3.500×0.095 tube. Butt dia 3.317″, 30-spline, 1.875″ dia, CL-to-weld 9.750″. Confirm tube OD and wall before welding.
Full Description

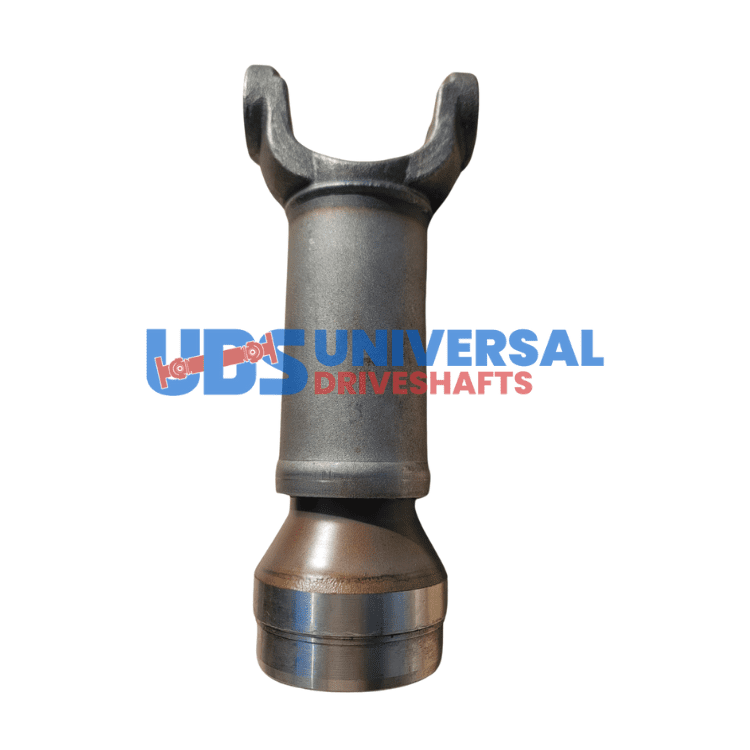

SA1480-3595 UDS 1480 Series Splined Sleeve – Fits 3.500 x 0.095 Tube, 30-Spline
The SA1480-3595 is a UDS 1480 / 68730 series splined sleeve in steel construction. It is designed to weld onto 3.500" OD x 0.095" wall driveshaft tubing. The butt diameter is 3.317", spline count is 30, spline diameter is 1.875", and the centerline-to-weld dimension is 9.750". This is a reversible assembly configuration.
Specifications
- Part Number: SA1480-3595
- Brand: UDS
- Series: 1480 / 68730
- Fits Tube: 3.500" OD x 0.095" wall
- Butt Diameter: 3.317"
- Spline Count: 30
- Spline Diameter: 1.875"
- CL to Weld: 9.750"
- Material: Steel
- Style: Reversible Assembly
When fitting the SA1480-3595, confirm tube OD is exactly 3.500" and wall thickness is 0.095" before welding. The butt diameter of 3.317" must seat flush into the tube end. The mating slip yoke must match the 30-spline, 1.875" diameter specification. The 9.750" CL-to-weld measurement determines final driveshaft working length.
The SA1480-3595 is the tube-specific variant of the SA1480-395 slip assembly — note the difference in tube fit. Verify the 3.500 x 0.095 tube specification matches your driveshaft tube dimensions before welding, as incorrect butt diameter seating will compromise weld integrity.
Additional information
| Brand | UDS |
|---|---|
| Series | 1480 |
| Splines count | 30 |
| Fits to tube | 3.500×0.095 |
| Butt dia | 3.317 |
| Splines dia | 1.875 |
| Notes | CL to Weld: 9.750″ |
| Material | STEEL |
| Partn number | SA1480-3595 |
