9980-55 – Center Support Bearing – Subaru Application – 1.181″ ID – 1.000″ Center Bearing To Base
$97.36
5 in stock
Description

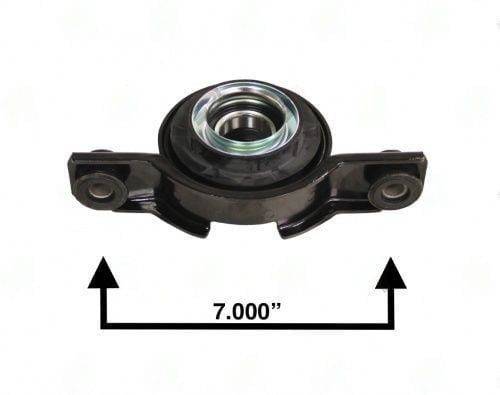

Subaru application center support bearing with 1.181″ bore and 1.000″ center-to-base height; rubber-isolated assembly for Subaru AWD two-piece propshaft hanger positions.
Full Description
Q: My Subaru Outback develops a driveline vibration after the first oil change. Could this be the center bearing? A: Vibration appearing immediately after service is more likely a propshaft that was removed and reinstalled without re-indexing the phasing marks, or fasteners torqued unevenly. The center support bearing does not require removal for an oil change on most Subaru models. Verify phasing marks are aligned and bracket bolts are torqued to spec before attributing vibration to the 9980-55.
Q: What dimensions define the 9980-55? A: Bore ID 1.181" (30 mm); center-to-base height 1.000"; rubber-isolated ball bearing assembly for Subaru AWD propshaft applications.
Q: Is there a difference between Subaru Legacy and Outback center bearings for this bore size? A: Legacy and Outback share many propshaft components but differ in ride height and suspension geometry. The Outback's higher ride height may require a different center bearing height variant. Verify by Subaru model code and production year -- do not assume cross-compatibility between Legacy and Outback center bearings without confirming the OEM part number.
Q: What dimensions define the 9980-55? A: Bore ID 1.181" (30 mm); center-to-base height 1.000"; rubber-isolated ball bearing assembly for Subaru AWD propshaft applications.
Q: Is there a difference between Subaru Legacy and Outback center bearings for this bore size? A: Legacy and Outback share many propshaft components but differ in ride height and suspension geometry. The Outback's higher ride height may require a different center bearing height variant. Verify by Subaru model code and production year -- do not assume cross-compatibility between Legacy and Outback center bearings without confirming the OEM part number.
Additional information
| Application | Subaru |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.000 |
| Ctr to ctr of mount holes | 7.000 |
| Partn number | 9980-55 |
