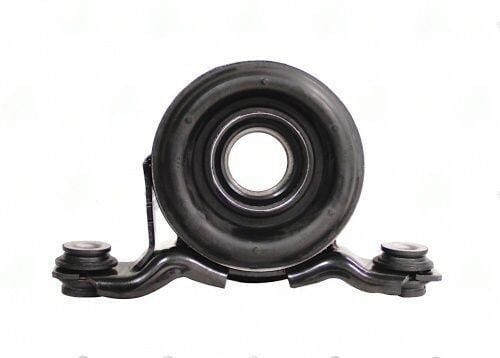

9980-54 – Center Support Bearing – Subaru Application – 1.181″ ID – 2.125″ Center Bearing To Base
$95.77
5 in stock
Description
Subaru application center support bearing with 1.181″ bore and 2.125″ center-to-base height; rubber-isolated assembly for Subaru AWD propshaft taller hanger bracket positions.
Full Description
9980-54 Specifications
Application: Subaru | Bore ID: 1.181" (30 mm) | Center to Base: 2.125" | Type: Rubber-isolated center support bearing
At 2.125" center-to-base height, the 9980-54 is among the taller Subaru center bearing assemblies, used on applications where the crossmember sits higher relative to the propshaft -- typical of lifted or higher-riding Subaru models such as the Outback and Forester with higher-set crossmember geometry.
The 30 mm bore is consistent across the Subaru AWD propshaft range, but the center-to-base height varies significantly between models and trim levels. One common error is using a 9980-51 or 9980-52 (both with 0.750" height) on an application that requires the 2.125" 9980-54 -- the result is the propshaft sitting 1.375" below its design axis at the center joint, creating a severe angle condition that destroys the center bearing within 5,000 miles. Subaru OEM cross-references in the 27471 and 27480 series; confirm via model code and production date.
Additional information
| Application | Subaru |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.125 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Cannot be used on OE shaft. Has tab welded to passenger side of bracket . Same as 9980-52 but with the 6.625″ bolt to bolt spacing. |
| Partn number | 9980-54 |
