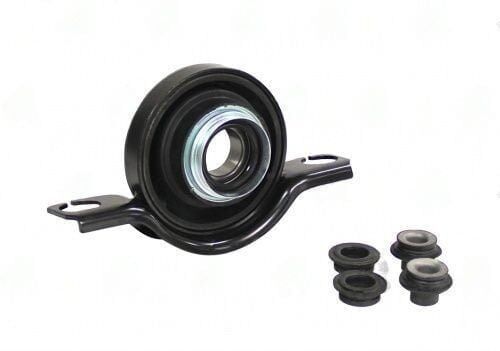

9980-53 – Center Support Bearing – Subaru Application – 1.181″ ID – 1.125″ Center Bearing To Base
$97.27
9 in stock
Description
Subaru application center support bearing with 1.181″ bore and 1.125″ center-to-base height; rubber-isolated ball bearing assembly for Subaru AWD two-piece propshaft systems.
Full Description
| SKU | 9980-53 |
|---|---|
| Application | Subaru AWD (confirm model year) |
| Bore ID | 1.181" (30 mm) |
| Center to Base | 1.125" |
| Type | Rubber-isolated center support bearing |
- 1.125" center-to-base -- confirm against the removed bearing; adjacent Subaru variants include 1.000" (9980-55) and 1.500" (9980-42), so a 0.125" measurement error produces the wrong part
- 30 mm bore: Subaru AWD stub shaft standard diameter for AWD-equipped models
- Rubber isolator: bonded and tuned for Subaru's boxer engine frequency characteristics
- Subaru OEM cross-references in the 27471 series -- confirm via model and year
Tip: when inspecting the old bearing for root cause before replacement, look for asymmetric wear on the bearing outer face. A bearing that failed with the outer race tilted (contact pattern shifted to one side of the outer race) indicates the crossmember bracket was mounted off-square. Correct the bracket alignment before installing the 9980-53 replacement.
Additional information
| Application | Subaru |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.125 |
| Ctr to ctr of mount holes | 7.000 |
| Notes | Cannot be used on OE shaft. New shafts only. |
| Partn number | 9980-53 |
