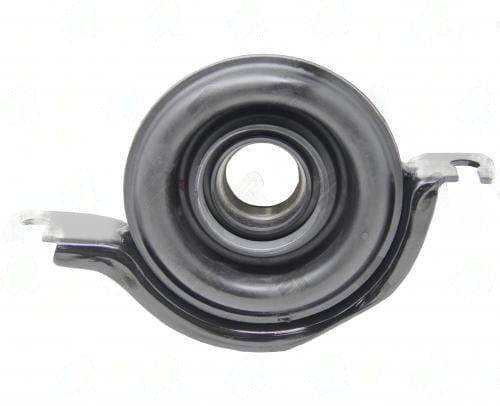

9980-51 – Center Support Bearing – Subaru Application – 1.181″ ID – 750″ Center Bearing To Base
$97.27
10 in stock
Description
Subaru application center support bearing with 1.181″ bore and 0.750″ center-to-base height; rubber-isolated assembly for Subaru AWD two-piece propshaft hanger positions.
Full Description
- SKU
- 9980-51
- Application
- Subaru AWD (various -- confirm model year)
- Bore ID
- 1.181" (30 mm)
- Center to Base
- 0.750"
- Type
- Rubber-isolated center support bearing
- Related SKU
- 9980-52 (same height, different bracket profile)
Application notes: the 9980-51 and 9980-52 share identical bore and height dimensions but differ in bracket configuration -- mounting slot geometry, arm angle, or isolator profile. This difference is visible when comparing the removed bearing side-by-side against both SKUs. Ordering by dimension alone when both these SKUs appear in the product catalog will result in a 50% error rate; always cross-check the Subaru OEM part number from the removed assembly. Subaru OEM references in the 27471 series; exact number depends on model, year, and drivetrain configuration.
Additional information
| Application | Subaru |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 750 |
| Ctr to ctr of mount holes | 6.750 |
| Notes | CB mounts at an offset . one bracket sits below .75″ and the opposite side mounts even |
| Partn number | 9980-51 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Center Support Bearing (323) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 0 Notes 620 Pickup (73-79) Partn number 1280-10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Juke 11-17 Bearing id 1.181 Center bearing to base 570 Ctr to ctr of mount holes 7.125 Notes Bolt heads opposite side of spacers Partn number 1280-15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 9.375 Notes Pickup 4X4 (79-88) Partn number 1280-20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan, Infiniti Bearing id 1.181 Center bearing to base 2.170 Ctr to ctr of mount holes 6.000 Notes Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer Partn number 1280-30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.378 Center bearing to base 2.180 Ctr to ctr of mount holes 0 Notes Infiniti/ Nissan. Like 1280-30 but with larger bearing ID / Bracket not included. comes with new nut washer/spacer Partn number 1280-35 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.500 Ctr to ctr of mount holes 6.000 Notes Nissan / Infiniti / Frontier 4X4 (98-03) Hardbody 4X4 (86-97) Pathfinder 4X4 (87-03) Xterra 4X4 (00-03) QX4 4X4 (00-03) Partn number 1280-40 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.125 Ctr to ctr of mount holes 5.875 Notes 300ZX (90-96) Partn number 1280-50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Infiniti Bearing id 1.181 Center bearing to base 1.125 Ctr to ctr of mount holes 6.000 Notes Q45 (90-96) Partn number 1280-70 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application INFINITI Q50, Q60 Bearing id 1.181 Ctr to ctr of mount holes 6.000 Notes 3 mm spacer Partn number 1280-74 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application INFINITI Q50, Q60, Q70, M37, M56 Bearing id 1.181 Center bearing to base 197 Ctr to ctr of mount holes 6.000 Notes 11 mm spacer Partn number 1280-75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
