9980-46 – Center Support Bearing – Subaru Application – 1.181″ ID – 750″ Center Bearing To Base
$97.27
10 in stock
16
People watching this product now!
Description
9980-46 center support bearing for Subaru. Bearing ID 1.181″, mount holes ” C-to-C. Verify stub shaft OD and bracket spacing.
Full Description

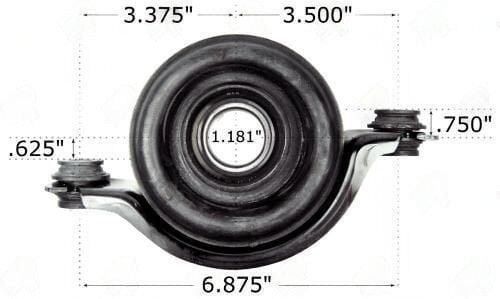

9980-46 Center Support Bearing - Subaru
The 9980-46 (also referenced as 9980/46) is a center support bearing manufactured by UDS. In a two-piece driveshaft layout, the center support bearing carries the midship stub shaft at the point where the front and rear driveshaft sections meet. The bearing presses into a rubber-isolated housing that bolts to the vehicle frame or crossmember. This bearing is catalogued for Subaru applications.
The bearing inner bore (ID) is 1.181 inches — this must match the outer diameter of the midship stub shaft exactly. Even a small mismatch causes either interference fit problems or excessive play. The centerline-to-base dimension is 750 inches, measured from the bearing centerline to the bottom of the mounting bracket; this determines the working angle of the front driveshaft section. Comes with grommets, Mounting brackets are offset, One is even and the opposite is .75" offset.
Specifications
- Part Number: 9980-46
- Brand: UDS
- Application: Subaru
- Bearing id: 1.181
- Center bearing to base: 750
- Ctr to ctr of mount holes: 6.625
- Notes: Comes with grommets, Mounting brackets are offset, One is even and the opposite is .75" offset
Fitment & Installation Notes
Before ordering the 9980-46, measure the midship stub shaft OD and confirm it matches the 1.181-inch bore. Also verify the frame bracket hole spacing matches the -inch center-to-center dimension. The rubber isolator in the housing should be replaced if cracked or oil-contaminated, as a degraded isolator transmits driveshaft vibration directly to the chassis.
View the full range of Center Support Bearings for two-piece driveshaft applications.
Additional information
| Application | Subaru |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 750 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Comes with grommets, Mounting brackets are offset, One is even and the opposite is .75″ offset |
| Partn number | 9980-46 |
