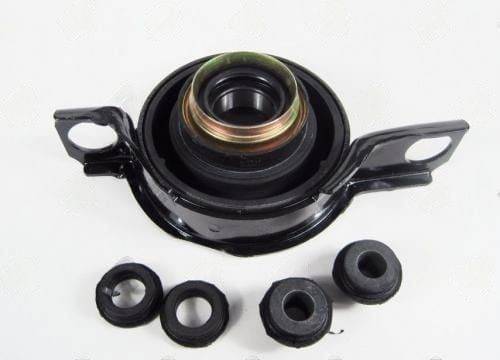

9980-44 – Center Support Bearing – Subaru Application – 1.181″ ID – 750″ Center Bearing To Base
$97.27
10 in stock
Description
Subaru application center support bearing with 1.181″ bore and 0.750″ center-to-base height; rubber-isolated assembly — confirm OEM part number to distinguish from adjacent Subaru SKUs.
Full Description
9980-44 -- Subaru AWD Center Support Bearing, 30 mm Bore
The 9980-44 is another member of the Subaru 30 mm / 0.750" center bearing family. Like the 9980-46, 9980-48, 9980-51, and 9980-52, this SKU shares bore diameter and center-to-base height with several siblings, but differs in bracket configuration for a specific Subaru application variant.
What separates Subaru center bearing failures from domestic truck failures: Subaru AWD systems apply torque to the rear wheels continuously, meaning the center bearing on a Subaru sees rotation load at all times -- not just under specific conditions. This constant-use pattern accelerates rubber isolator fatigue compared to a part-time 4WD truck. Plan to inspect the center support bearing every 60,000 miles on high-mileage Subaru AWD vehicles.
Subaru OEM cross-reference in the 27471 or 27480 series depending on production year and model; confirm via VIN or Subaru STIS parts catalog. The 9980-44 bracket must seat flush against the crossmember without rocking -- any rocking indicates an incorrect SKU was selected.
Additional information
| Application | Subaru |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 750 |
| Ctr to ctr of mount holes | 6.875 |
| Notes | CB mounts at an offset . one bracket sits below .75″ and the opposite side mounts even. Comes with grommets |
| Partn number | 9980-44 |
