9980-25 – Center Support Bearing – Gm Application – 1.181″ ID – 1.000″ Center Bearing To Base 211019-1XV , N214826
$64.17
6 in stock
Description

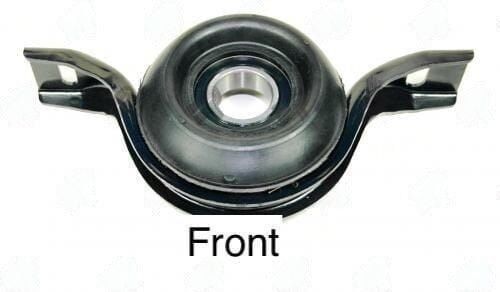

GM application center support bearing with 1.181″ bore and 1.000″ center-to-base height; rubber-isolated ball bearing assembly for GM two-piece driveshaft compact hanger brackets.
Full Description
| SKU | 9980-25 |
|---|---|
| Application | GM (various -- confirm model year) |
| Bore ID | 1.181" (30 mm) |
| Center to Base | 1.000" |
| Type | Rubber-isolated center support bearing |
- 1.181" (30 mm) bore -- smaller than the 35 mm and 40 mm units common in fullsize GM trucks; verify the stub shaft OD before ordering
- 1.000" center-to-base height -- compact bracket for GM applications with minimal crossmember drop
- GM OEM cross-references in the 22800834 and related series depend on the specific model and year
- Rubber isolator: bonded construction, not a loose insert that could rotate during installation
Tip: before pressing the 9980-25 onto the GM stub shaft, rotate the shaft one full revolution and listen for any roughness at the spline-to-slip yoke connection. A worn stub shaft slip yoke creates micro-axial movement that stresses the center bearing beyond its design load. Replace the stub shaft section if spline wear is detected.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.000 |
| Ctr to ctr of mount holes | 7.500 |
| Notes | Vue 02-07, Equinox 05-09, Torrent 06-09 |
| Partn number | 9980-25 |
