9980-26 Center Support Bearing Colorado, Canyon, Isuzu I-280, I-290, I-370, M12-1.75 threaded 89040334, HB1595-10, 9980-26
$25.33
2 in stock
Description

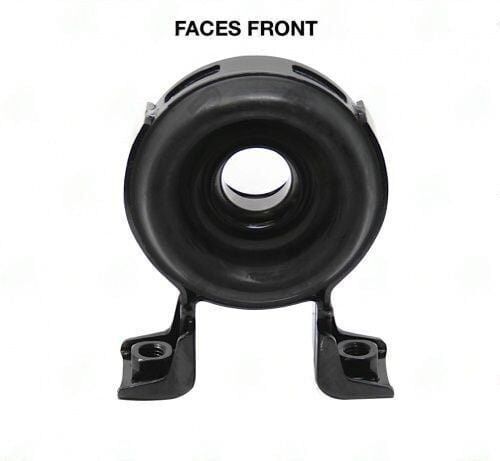

Center support bearing for Chevy Colorado, GMC Canyon, Isuzu I-280/I-290/I-370 with M12-1.75 threaded bracket; 1.181″ bore rubber-isolated assembly.
Full Description
9980-26 Application Coverage
Vehicles: Chevy Colorado, GMC Canyon, Isuzu I-280, I-290, I-370 | Bore ID: 1.181" (30 mm) | Bracket Thread: M12-1.75 | Type: Rubber-isolated center support bearing
The 9980-26 is notable for using M12-1.75 metric threaded fasteners -- a specification detail that catches domestic shops off-guard. If the technician reaches for 7/16-inch SAE hardware to mount this bracket, the fasteners will cross-thread in the metric crossmember holes. Always use M12-1.75 fasteners as specified and torque to approximately 70--80 Nm (52--59 ft-lb).
Colorado, Canyon, and Isuzu I-series mid-size trucks share platform architecture. The 9980-26 serves all three nameplates where equipped with a two-piece rear driveshaft. GM OEM reference: 25879571 applies to Colorado/Canyon; Isuzu OEM numbers in the 5-37510 series may apply to the I-series. Confirm via VIN for exact model year coverage.
Additional information
| Application | 1330 |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 4.000 |
| Ctr to ctr of mount holes | 3.625 |
| Notes | Colorado, Canyon, Isuzu I-280, I-290, I-370, M12-1.75 threaded |
| Partn number | 9980-26 |
