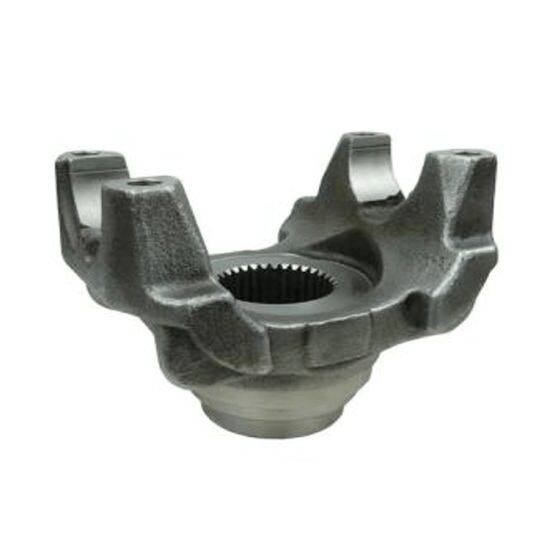

90-4-311-1 – End Yoke – SPL90 Series – 2.024″ Splines Dia – 39 Spline
$86.69
1 in stock
Description
90-4-311-1 — SPL90 Series end yoke with 2.024-inch spline bore, 3.000-inch hub, and BS snap ring retention. Drop-in replacement for SPL90 Series output shafts.
Full Description
Every driveshaft system is only as strong as its weakest yoke. The 90-4-311-1 is a UDS SPL90 Series end yoke built to handle the torsional demands of performance applications -- from high-horsepower street builds to off-road rigs that flex the suspension to its limits. With a 2.024" spline interface and precision-machined bearing seats, this yoke transfers power cleanly without the slop that kills U-joints prematurely.
Performance-Grade Construction
The SPL90 Series yoke series was developed to handle loads beyond light-duty OEM specifications. The 90-4-311-1 carries the full load rating of the SPL90 Series system, making it appropriate for high-torque applications including turbocharged and supercharged drivetrains, towing configurations, and competition use.
- Full SPL90 Series torque rating -- no derating for special applications
- Precision bearing bores -- eliminate U-joint cap rocking that causes premature wear
- Snap ring style: BS -- positive retention under shock loading
- Hub diameter: 3.000" -- correct registration against diff or transfer case seal
| Specification | Value |
|---|---|
| Series | SPL90 Series |
| Spline Diameter | 2.024" |
| Spline Count | 39 |
| Hub Diameter | 3.000" |
| Center U-Joint to End | 4.625" |
| Through Hole Diameter | 2.312" |
| Snap Ring Style | BS |
| Brand | UDS |
Specifications
Performance fitment requires exact dimensional matching. The 90-4-311-1 is built to the following specs:
Pairing for Maximum Drivetrain Life
The weakest link in any driveshaft assembly determines its service life. Pairing a fresh 90-4-311-1 end yoke with a new SPL90 Series U-joint and a properly balanced driveshaft eliminates the three most common failure points. For high-horsepower builds, also inspect the driveshaft tube for straightness and the slip yoke for wear -- replacing a yoke without addressing these components leaves the system vulnerable to the same vibration-induced failure.
Center-to-end measurement of 4.625" must be accounted for when calculating driveshaft operating length after suspension lifts or drivetrain swaps.
Part 90-4-311-1 is a UDS product. Universal Driveshafts stocks a complete range of SPL90 Series end yokes, U-joints, and driveshaft components. Contact our technical team for fitment assistance.
Additional information
| Cj to end | 4.625 |
|---|---|
| Hub dia | 3.000″ |
| Partn number | 90-4-311-1 |
| Series | SPL90 |
| Splines count | 39 |
| Splines dia | 2.024 |
| Style | BS |
| Through hole | 2.312 |
