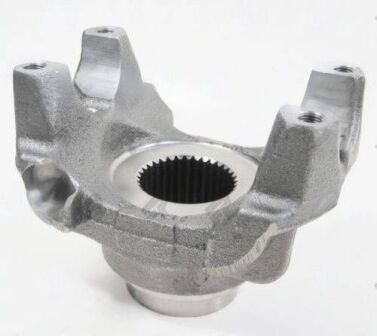

90-4-11-1 – End Yoke – 1.790″ splines dia – 2.190″ Hub Dia – 34 Spline
$218.65
1 in stock
17 People watching this product now!
Description
SPL90 series 90-4-11-1 end yoke. 1.790″ x 34 spline | 2.190″” hub dia | 4.062″ CJ-to-end | 2.250″ bore. BS retention. Direct swap for axle or T-case output.
Full Description
The 90-4-11-1 is a SPL90 series end yoke. It connects the driveshaft to the axle or transfer case output -- and it carries the u-joint at that end.
90-4-11-1 End Yoke Specifications & Series
The 90-4-11-1 end yoke -- 1.790" x 34 spline | 2.190"" hub dia | 4.062" CJ-to-end | 2.250" bore.
Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: SPL90 -- application-specific drivetrain
- Spline: 1.790" x 34 -- must match axle/T-case shaft exactly
- Hub dia: 2.190"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.062" -- affects driveshaft working length and angle
- Bore: 2.250" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
Specifications
- SKU: 90-4-11-1
- Brand: UDS
- Series: SPL90
- Spline Dia: 1.790"
- Spline Count: 34
- Hub Dia: 2.190""
- CJ to End: 4.062"
- Through Hole: 2.250"
- Style: BS
Additional information
| Cj to end | 4.062 |
|---|---|
| Hub dia | 2.190" |
| Partn number | 90-4-11-1 |
| Series | SPL90 |
| Splines count | 34 |
| Splines dia | 1.790" |
| Style | BS |
| Through hole | 2.250" |
