UDS 6.5-4-4571X End Yoke – Series 1810 – BP Style
$124.04
4 in stock
12
People watching this product now!
Description
6.5-4-4571X UDS 1810 series BP end yoke. 44-spline, 2.274″ dia, hub 3.000″, CJ-to-end 5.250″, through hole 2.500″. Verify spline count and diameter against output shaft.
Full Description

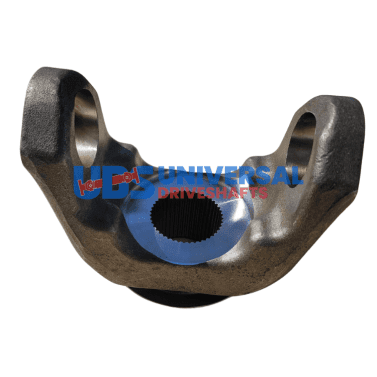

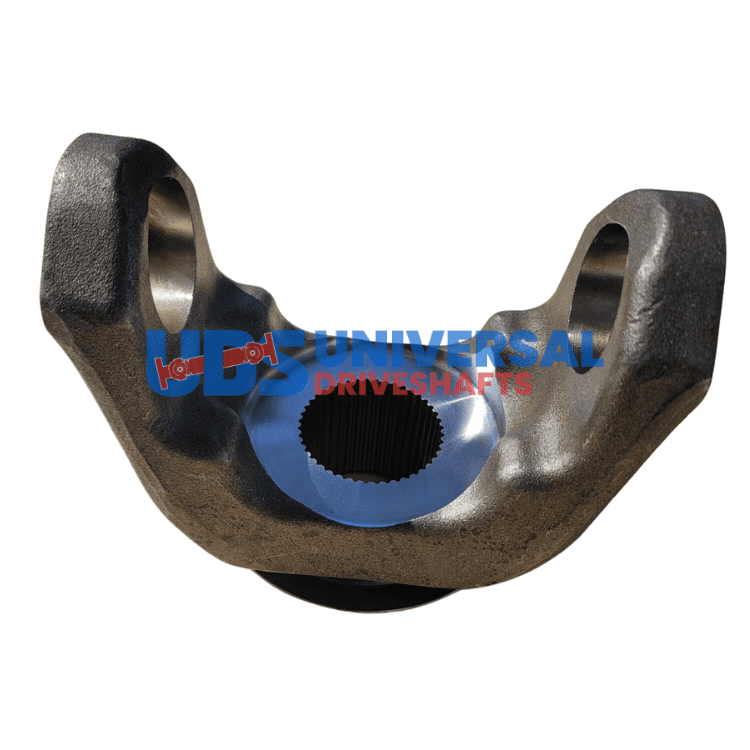

6.5-4-4571X UDS 1810 Series End Yoke – BP Style, 44-Spline 2.274" Diameter
The 6.5-4-4571X is a UDS 1810 series end yoke in BP (bearing plate) style. The spline count is 44 with a spline diameter of 2.274". Hub diameter is 3.000", CJ-to-end dimension is 5.250", and the through-hole diameter is 2.500". This is a 1810BP configuration.
Specifications
- Part Number: 6.5-4-4571X
- Brand: UDS
- Series: 1810
- Style: BP (Bearing Plate)
- Spline Count: 44
- Spline Diameter: 2.274"
- Hub Diameter: 3.000"
- CJ to End: 5.250"
- Through Hole: 2.500"
When fitting the 6.5-4-4571X, confirm the output shaft has 44 splines at 2.274" pitch diameter. The hub diameter of 3.000" and through hole of 2.500" are critical clearance dimensions for the bearing plate mounting configuration. The 5.250" CJ-to-end measurement affects driveshaft working length — verify this against the driveshaft build specification.
The 1810 series has higher torque capacity than the 1710 series. The BP (bearing plate) style uses a flat plate for U-joint retention rather than straps. Confirm that the mating U-joint cross is also rated for 1810 series before installation. The 6.5-4-4571X is designated as 1810BP — verify the BP plate bolt pattern matches the mating cross cap dimensions.
Additional information
| Series | 1810 |
|---|---|
| Cj to end | 5.250″ |
| Hub dia | 3.000″ |
| Splines count | 44 |
| Splines dia | 2.274 |
| Style | BP |
| Through hole | 2.500″ |
| Notes | 1810BP |
| Partn number | 6.5-4-4571X |
| Brand | UDS |
