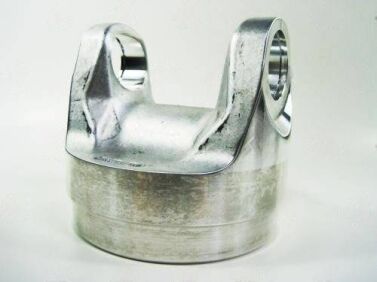

4826-50A – Weld Yokes – 1480 Series – Butt Dia 4.757″ – Tube Dia Wall 5.000X0.125
$125.38
16 People watching this product now!
Description
4826-50A Weld Yoke — Aluminum, 1480 series, fits 5.000X0.125 tube | 4.757″ butt dia | 2.875″ center-to-weld. Genuine weld-on replacement. Match tube OD before ordering.
Full Description
Building or rebuilding a 1480 series driveshaft means getting the weld yoke right first. The 4826-50A weld yoke is machined for one tube diameter and one series — those two specs are non-negotiable. Get the butt diameter wrong and the weld joint is already compromised before you strike the arc.
4826-50A Weld Yoke — Tube Fit & Aluminum Specs
The 1480 series covers heavy commercial Class 3-4 trucks and Dana heavy applications. The 4826-50A weld yoke specs: fits 5.000X0.125 tube | 4.757" butt dia | 2.875" center-to-weld. Aluminum T6061 — roughly 60% lighter than steel equivalent, corrosion resistant, correct for high-RPM builds where rotating mass matters. Center-to-weld dimension is critical for total shaft length calculations — it's the distance consumed by this yoke on that end of the tube.
Measure your tube OD before cutting and welding the 4826-50A weld yoke. Tack it in place first, check runout is within 0.005" before committing to full weld. A slight off-angle tack that gets welded solid will show up as vibration at 50+ mph that no balancer can fully correct.
Key Features
- Series: 1480 — heavy commercial Class 3-4 trucks and Dana heavy applications
- Tube fit: 5.000X0.125 — butt diameter is machined specifically for this OD
- Butt dia: 4.757" — must match tube OD precisely for a centered weld joint
- Center-to-weld: 2.875" — factors into total shaft length calculation
- Aluminum T6061 — lightweight, corrosion resistant, reduces rotating inertia
- Brand: UDS
Specifications
- SKU: 4826-50A
- Brand: UDS
- Series: 1480
- Material: Aluminum
- Tube Fit: 5.000X0.125
- Butt Dia: 4.757"
- Center to Weld: 2.875"
Additional information
| Butt dia | 4.757 |
|---|---|
| Center u j to weld | 2.875 |
| Material | ALUMINUM |
| Partn number | 4826-50A |
| Series | 1480 |
| Tube dia wall | 5.000X0.125 |
| Brand | UDS |
