4180-46 Carrier Bearing Ford Super Duty F450 F550 / Dodge/Ram 2500 3500 Heavy Duty
$115.60
+50 in stock
Description

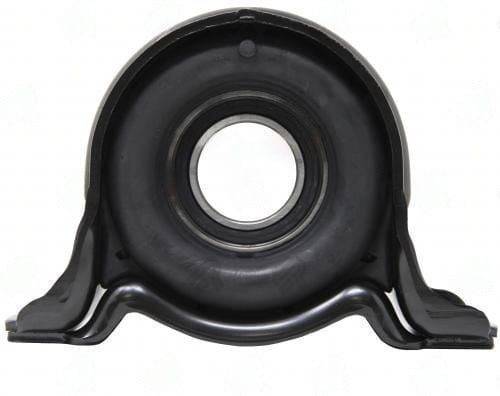

4180-46 center support bearing, Ford Super Duty F450/F550 and Dodge/Ram 2500/3500 Heavy Duty applications.
Full Description
The 4180-46 is one of the few center support bearings that crosses between Ford and Dodge heavy-duty platforms. Ford Super Duty F450 and F550 trucks share certain driveshaft center bearing dimensions with Dodge/Ram 2500 and 3500 heavy-duty applications -- but the bracket mounting pattern can differ between chassis generations and trim configurations. Confirming the bracket bolt hole spacing against your specific chassis is essential before installation.
| SKU | 4180-46 |
|---|---|
| Ford Applications | Super Duty F450, F550 |
| Dodge/Ram Applications | 2500, 3500 Heavy Duty |
| Inner Bore | 1.574 inches |
| Part Type | Center Support Bearing with rubber isolator and bracket |
Heavy-duty applications like the F450/F550 and Ram 3500 place higher torsional loads on the midshaft assembly than light-duty one-piece shaft trucks. The center support bearing on these platforms absorbs both the vibration isolation function and the radial load from a driveshaft that may be carrying payload torque from a diesel engine. Inspect the rubber isolator for cracking, compression set, or separation from the outer housing -- isolator failure on these platforms often presents as a clunk at takeoff before the bearing itself fails.
Browse all center support bearings for heavy-duty Ford and Dodge applications.
Additional information
| Application | Ford & Dodge |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.752 |
| Ctr to ctr of mount holes | 6.533 |
| Notes | Ford Super Duty F450 F550 / Dodge Ram 2500 3500, threaded insert, supersedes 4180-45 |
| Partn number | 4180-46 |
