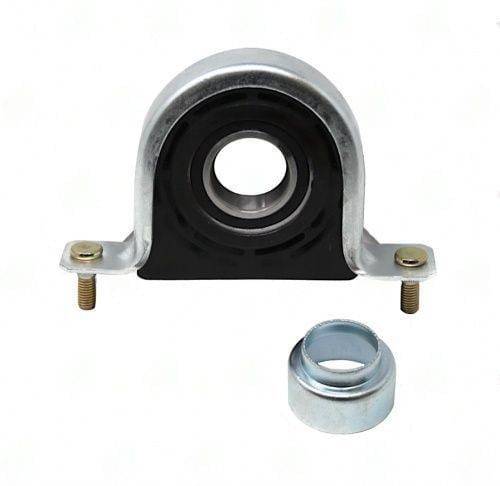

4180-35 Center Support Bearing GM Chevy Silverado 2500 & 3500 212028-1X

Chevrolet Silverado 2500 and 3500 HD trucks with a two-piece driveshaft are a common CSB replacement job, and the 4180-35 (cross-ref 212028-1X) is the standard replacement unit for these platforms. The failure pattern on Silverado center support bearings is predictable: the rubber isolator cracks and separates from the outer housing, allowing the bearing assembly to contact the bracket metal-to-metal. The resulting vibration is often felt as a resonance at cruise speed that disappears at full throttle or deceleration -- a characteristic symptom of isolator failure rather than U-joint wear.

• SKU: 4180-35
• Cross-Reference: 212028-1X (GM/Chevy OE designation)
• Application: Chevrolet Silverado 2500, Silverado 3500
• Inner Bore: 1.574 inches

When replacing on the Silverado: support the rear driveshaft section before loosening the bearing bracket bolts to prevent the shaft from dropping. The bracket bolts on these trucks are often corroded -- use penetrating oil the day before and use a breaker bar rather than an impact wrench to avoid snapping studs in the crossmember. After installation, verify that the rubber isolator is not in contact with the bracket arms at any point -- contact means either the bearing was pressed off-center or the bracket is deformed from a prior failure event.
