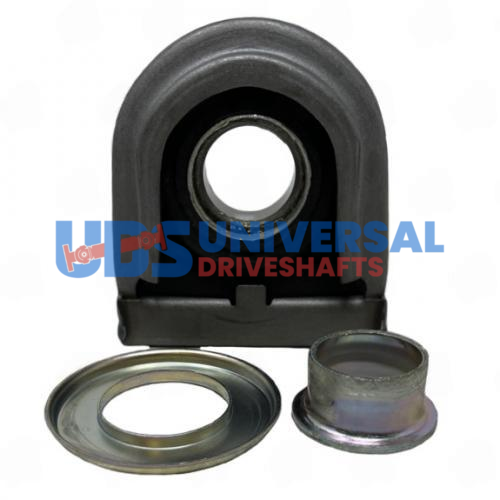

4180-16 – Center Support Bearing – Dodge Application – 1.574″ ID – 3.250″ Center Bearing To Base

At 3.250 inches center-to-base, the 4180-16 is the tallest standard Dodge center support bearing in the 4180 series -- noticeably taller than the 4180-10 at 2.337 inches. This height difference is not an upgrade or variation; it reflects a different Dodge chassis tunnel geometry where the driveshaft runs at a higher elevation relative to the frame mounting surface. Fitting the 4180-16 in place of the 4180-10 (or vice versa) changes the driveshaft angle at the midshaft and will cause vibration from the first mile after installation.

SKU

4180-16

Application

Dodge

Inner Bore

1.574 inches

Center-to-Base Height

3.250 inches

Note

Tallest unit in standard Dodge 4180 series -- verify before ordering

To identify whether the 4180-16 or 4180-10 is correct for your application: measure the distance from the center of your installed bearing housing to the bracket mounting surface with the vehicle at ride height and the suspension loaded. Do this before disassembly. Once the bearing is removed and the driveshaft sags, that reference dimension is gone and you're guessing. The 0.913-inch height difference between the 4180-16 and 4180-10 is large enough to clearly differentiate the two with a simple ruler measurement.
