4180-50 – Center Support Bearing – Ford Application – 1.574″ ID – 2.524″ Center Bearing To Base
$58.67
9 in stock
Description
4180-50 center support bearing for Ford, 1.574 inch bore, 2.524 inch center-to-base height.
Full Description

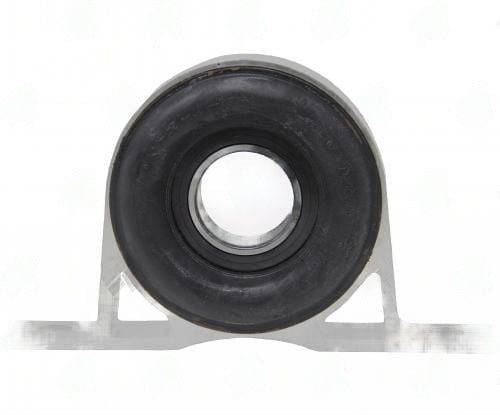

4180-50 -- Ford Center Support Bearing, 1.574 in Bore, 2.524 in Height
The 4180-50 shares the same 2.524-inch center-to-base height as the 5017405, and both carry the same 1.574-inch bore for Ford 1350/1410-series applications. The distinction between them lies in the bracket geometry -- bolt hole pattern spacing and bracket tab dimensions differ, making them application-specific despite sharing core dimensions. If you are uncertain which unit your Ford application requires, compare the bracket hole spacing on the 4180-50 against your original bracket before purchasing.
Ford two-piece driveshaft systems span a wide range of trucks and vans across the F-Series, Econoline, and Excursion platforms. Within these platforms, center support bearings are further differentiated by wheelbase and driveshaft length -- a longer driveshaft often uses a different bracket configuration to account for tunnel geometry. This is why the Ford CSB catalog contains multiple units at the same bore and height with different part numbers.
- Bore: 1.574 inches -- verify stub shaft OD before pressing
- Height: 2.524 inches center-to-base -- measure original before removal
- Bracket: Confirm hole spacing matches original bracket
- Related unit: 5017405 shares height, different bracket pattern
Browse the full center support bearing range for all Ford heights and bracket configurations.
Additional information
| Application | FORD |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.524 |
| Ctr to ctr of mount holes | 6.620 |
| Notes | FLAT BOTTOM ON BRACKET. ( SITS FLAT ) Used on F250 & F350 applications, Heavy Duty Version |
| Partn number | 4180-50 |
