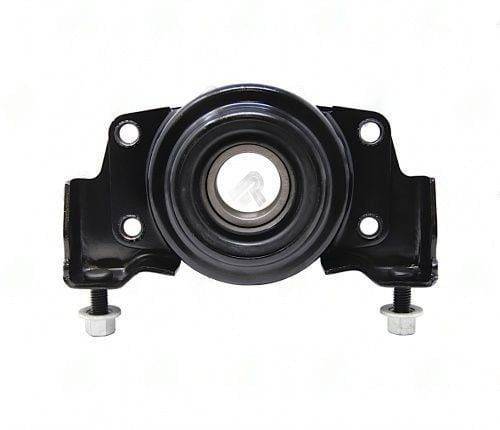

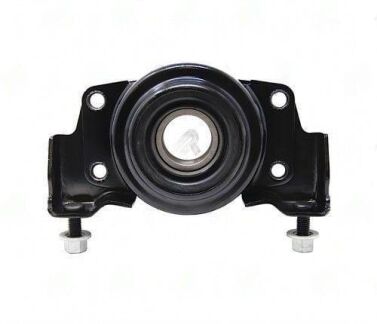

3R80-60 – Center Support Bearing – Gm Application – 1.378″ ID – 2.375″ Center Bearing To Base
$49.46
16 in stock
Description
GM application center support bearing with 1.378″ bore and 2.375″ center-to-base height; rubber-isolated ball bearing assembly for GM two-piece driveshaft systems.
Full Description
- SKU
- 3R80-60
- Application
- GM two-piece driveshaft (various)
- Bore ID
- 1.378" (35 mm)
- Center to Base Height
- 2.375"
- Type
- Rubber-isolated center support bearing
- OEM Cross-Reference
- GM 22836399 and equivalent AC Delco numbers
Application notes: GM fullsize trucks and SUVs with 35 mm stub shaft journals use this assembly. The 2.375" center-to-base height is slightly taller than the standard 2.250" used on many domestic trucks -- do not substitute without measuring. A mismatched bracket height changes the driveshaft working angle at the center joint, producing a vibration that many shops incorrectly diagnose as a tire balance issue. After installation, always perform a road test at 60--70 mph and note whether any vibration is speed-sensitive (balance-related) or RPM-sensitive (driveshaft-related).
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.378 |
| Center bearing to base | 2.375 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Chevrolet GMC, Enclosed type bracket w/ studs (M10-1.5) |
| Partn number | 3R80-60 |
