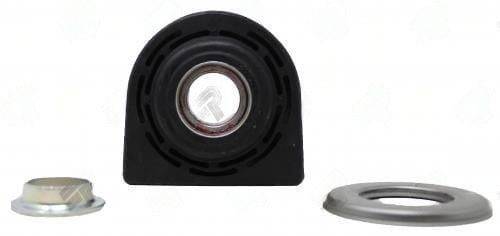

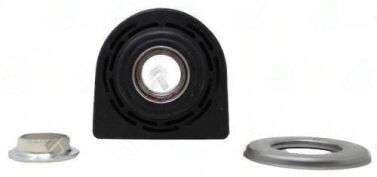

211175X – Center Support Bearing – 1.378″ ID – 2.250″ Center Bearing To Base
$36.61
10 in stock
Description
Spicer/Dana 211175X center support bearing with 1.378″ bore and 2.250″ center-to-base height; rubber-isolated assembly for 35 mm stub shaft two-piece driveshafts.
Full Description
211175X -- Spicer/Dana Cross-Reference Center Support Bearing
The 211175X designation is a direct Spicer/Dana part number. This center support bearing fits a 1.378" (35 mm) bore at 2.250" center-to-base height, covering a range of light and medium duty truck applications where Dana specified this assembly in their OEM driveshaft kits.
Switching from 1.574" bore to 1.378" bore is a critical sizing step -- these two dimensions are close enough that an inexperienced installer might attempt to use a 1.574" bearing on a 35 mm stub shaft with shim tape or adhesive. That approach fails within a few hundred miles as the spinning stub shaft generates heat and destroys the bearing inner race. Always confirm the stub shaft OD with a micrometer before ordering.
The rubber isolator on the 211175X uses a bonded construction. Center-to-base height is 2.250", matching the majority of domestic light truck crossmember bracket dimensions. Neapco 2-3049-1 and equivalent GMB part numbers may apply for cross-referencing on GM-platform vehicles.
Additional information
| Application | 1310, 1330, 1350 |
|---|---|
| Bearing id | 1.378 |
| Center bearing to base | 2.250 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Common CB w/rubber backing / double bracket housing |
| Partn number | 211175X |
