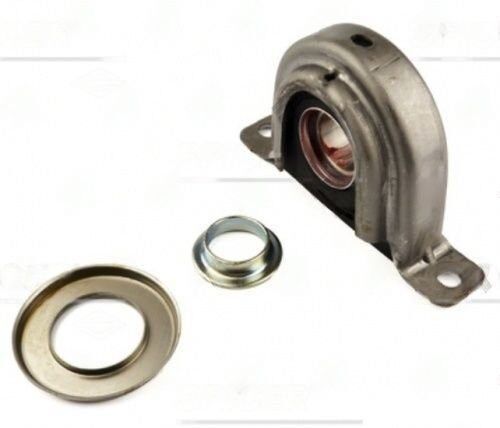

211499X – Center Support Bearing – 1350 Series – 1.574″ ID – 2.250″ Center Bearing To Base
$80.73
10 in stock
Description
1350 series center support bearing SKU 211499X: 1.574″ bore, 2.250″ center-to-base height; direct cross-reference to Spicer/Dana 211499X hanger assembly.
Full Description
| SKU | 211499X |
|---|---|
| Cross-Reference | Spicer / Dana 211499X |
| U-Joint Series | 1350 (1.188" cap diameter) |
| Bore ID | 1.574" (40 mm) |
| Center to Base | 2.250" |
| Type | Rubber-isolated center support bearing |
- 211499X is the Spicer/Dana part number -- this SKU is a direct replacement sourced to the same dimensional specification
- 1350 series driveshaft applications: common in 3/4-ton and 1-ton trucks where additional torque capacity over 1310 series is needed
- 40 mm bore -- verify stub shaft OD before installation; nominal dimension is 40.000" with H7/r6 interference fit tolerance
- Do not reuse the old bracket hardware if elongated bolt holes are present -- the bracket must be rigid to prevent cyclic loading
Tip: if the original Dana 211499X shows cracked rubber between the inner and outer brackets (not just surface checking), the vehicle has likely experienced a driveshaft overload event. Inspect the companion flange and weld yoke welds for cracking before returning to service.
Additional information
| Application | 1350 |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.250 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Ford F-150 |
| Partn number | 211499X |
