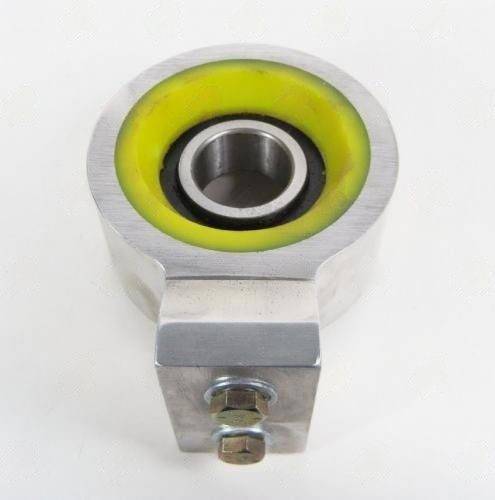

3180-47 – Center Support Bearing – 1310 Series – 1.574″ ID – 3.500″ Center Bearing To Base
$298.53
1 in stock
Description
1310 series center support bearing with 1.574″ bore and 3.500″ tall center-to-base dimension; rubber-isolated assembly for elevated crossmember hanger brackets.
Full Description
3180-47 Specifications
Series: 1310 | Bore ID: 1.574" (40 mm) | Center to Base: 3.500" | Type: Rubber-isolated center support bearing
The 3.500" center-to-base height makes the 3180-47 one of the taller units in the 1310-series lineup. This tall bracket is required when the crossmember sits significantly above the driveshaft centerline -- a design common in body-on-frame trucks where frame geometry demands a longer drop bracket. Ordering the standard 2.250" unit by mistake results in a driveshaft angled steeply upward at the center joint, creating a second-order vibration.
Verify your application by measuring the distance from the crossmember bolt face to the center of the stub shaft bore. The 1310 series operates with 1.062" U-joint cap diameter. Dana/Spicer 2-26-457 series cross-references may apply depending on exact application year and model. The rubber isolator on tall-bracket units carries more bending moment than short-bracket versions -- inspect the bracket mounting bolts for fatigue cracking around the weld nuts during each inspection interval.
Additional information
| Application | 1310 |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 3.500 |
| Ctr to ctr of mount holes | 1.500 |
| Notes | Chevrolet, Billet aluminum bracket w/ poly urethane |
| Partn number | 3180-47 |
