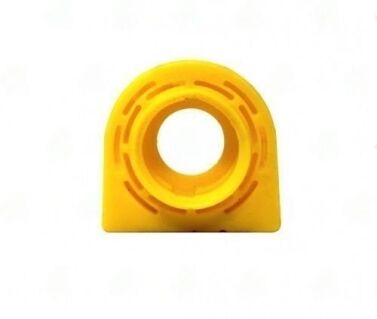

3180-99 – Center Support Bearing – 1310/1330 Series – 1.574″ ID – 2.250″ Center Bearing To Base
$80.77
1 in stock
Description
1310/1330 series center support bearing with 1.574″ bore and 2.250″ center-to-base height; rubber-isolated assembly for light-duty two-piece driveshaft hanger positions.
Full Description
Q: Can the 3180-99 be used on both 1310 and 1330 series driveshafts? A: Yes -- the 3180-99 designation covers both 1310 and 1330 applications because these series share the same stub shaft journal diameter (1.574"/40 mm). The bearing assembly fits either series without modification. The difference between 1310 and 1330 is the trunnion width of the U-joint, not the stub shaft size.
Q: Why does my center support bearing only last 30,000 miles on my work truck? A: Short service life is almost always caused by one of three conditions: (1) the stub shaft journal is worn undersize, allowing the bearing to frette; (2) the hanger bracket is cracked or loose, allowing impact loading; or (3) the vehicle is routinely overloaded, exceeding the driveshaft torque rating and transferring bending loads to the center bearing. Inspect all three before replacement.
Q: What ball bearing is inside the 3180-99? A: The inner bearing is a 40×62 mm deep-groove ball bearing (typically a 6008-type sealed unit). Bore ID: 1.574", center to base: 2.250". Neapco 2-3049 is a common cross-reference for this geometry.
Q: Why does my center support bearing only last 30,000 miles on my work truck? A: Short service life is almost always caused by one of three conditions: (1) the stub shaft journal is worn undersize, allowing the bearing to frette; (2) the hanger bracket is cracked or loose, allowing impact loading; or (3) the vehicle is routinely overloaded, exceeding the driveshaft torque rating and transferring bending loads to the center bearing. Inspect all three before replacement.
Q: What ball bearing is inside the 3180-99? A: The inner bearing is a 40×62 mm deep-groove ball bearing (typically a 6008-type sealed unit). Bore ID: 1.574", center to base: 2.250". Neapco 2-3049 is a common cross-reference for this geometry.
Additional information
| Application | 1310, 1330, 1350 |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.250 |
| Ctr to ctr of mount holes | |
| Notes | Urethane insert for standard 1.25″ bracket w/ 1.574″ bearing ID. ( No bracket or bearing included) |
| Partn number | 3180-99 |
