3R80-15 – Center Support Bearing – 1.574″ ID – Multiple Application – Notes 40x62x15 Bearing only
$73.36
5 in stock
Description
40x62x15 mm ball bearing only with 1.574″ bore; supplied without housing bracket for multi-application two-piece driveshaft stub shafts.
Full Description

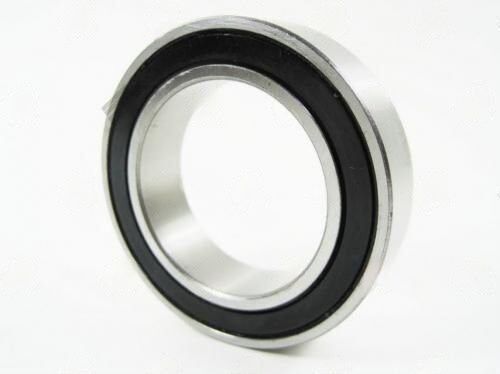

3R80-15 -- 40x62x15 Bearing-Only Center Support Insert
The 3R80-15 is a standalone 40×62×15 mm deep-groove ball bearing intended to replace the inner rolling element inside an existing center support bearing housing. This SKU does not include the rubber isolator or mounting bracket -- the housing must be retained from the original assembly.
A common installation mistake is pressing the new bearing in without checking the housing bore for out-of-round wear. If the housing has worn oval from extended operation with a failed bearing, the new insert will seat with uneven preload, shortening service life dramatically. Measure the housing bore at two perpendicular axes before pressing.
Bore ID is 1.574" (40 mm), OD 62 mm, width 15 mm. Sealed design (double rubber lip seal) retains grease and excludes road contamination. Confirm the stub shaft measures 40.000--40.012 mm for correct press-fit interference.
Additional information
| Application | MULTIPLE |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | |
| Ctr to ctr of mount holes | |
| Notes | 40x62x15 Bearing only. Fits in housings of 3R80-10, 3R80-25, 3R80-30 and 3R80-35 |
| Partn number | 3R80-15 |
