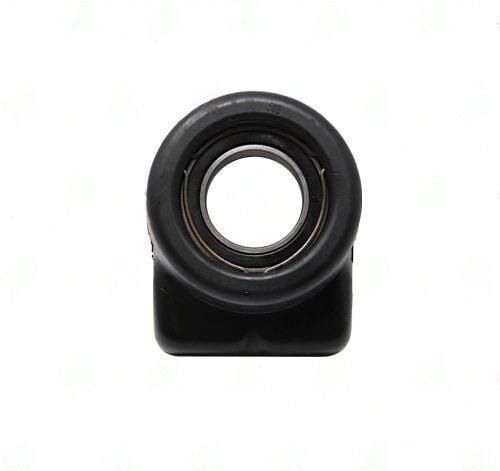

3R80-10 – 10 – Center Support Bearing – 1.574″ ID – 2.500″ Center Bearing To Base
$157.71
1 in stock
Description
Center support bearing with 1.574″ bore and 2.500″ center-to-base dimension for two-piece driveshaft applications requiring a mid-span rubber-isolated mount.
Full Description
- SKU
- 3R80-10
- Bore ID
- 1.574" (40 mm)
- Center to Base Height
- 2.500"
- Type
- Rubber-isolated center support bearing assembly
- Sealing
- Double-sealed ball bearing with rubber isolator bracket
Application note: the 2.500" center-to-base dimension is shorter than the 3R80-25 variant. Mixing up these two SKUs during assembly results in a binding driveshaft angle at the hanger bracket, causing vibration at highway speed. Always measure the existing bracket height before ordering. Cross-reference with Spicer 2-26 series hanger bearings for equivalent geometry. Inspect the crossmember mounting holes for elongation -- a loose bracket allows the bearing to move axially, transferring bending load to the stub shaft journal.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.500 |
| Ctr to ctr of mount holes | 1.500 |
| Notes | Cadillac Buick |
| Partn number | 3R80-10 |
