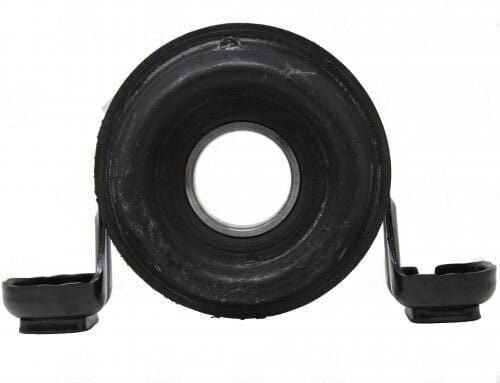

3580-50 – Center Support Bearing – Lincoln Navigator Application – 1.574″ ID
$59.92
5 in stock
Description
Lincoln Navigator application center support bearing with 1.574″ bore; rubber-isolated assembly for the mid-span hanger position on the two-piece driveshaft.
Full Description
A frequent failure mode on the Lincoln Navigator two-piece driveshaft is the center support bearing developing a howl or rumble at 45--65 mph that disappears at other speeds. This resonance occurs because the rubber isolator hardens with age, losing its ability to damp driveline harmonics through the center hanger bracket.
- SKU 3580-50 -- Lincoln Navigator application, 1.574" (40 mm) bore ID
- Rubber-isolated ball bearing assembly -- isolator dampens torsional vibration from the driveshaft
- Verify the stub shaft OD is 1.574" before installation; a worn shaft will not provide correct bearing retention
- OEM cross-reference: Ford/Lincoln part numbers in the 4L7Z-4B468-AA family -- confirm against your VIN
- After installation, check driveshaft phasing -- the front and rear sections must be in phase (slip yoke and weld yoke splines aligned) to prevent a first-order vibration
Tip: apply a thin coat of high-temp wheel bearing grease to the stub shaft journal before pressing the bearing, but keep it off the rubber isolator -- grease degrades the rubber compound over time.
Additional information
| Application | Lincoln Navigator |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.382 |
| Ctr to ctr of mount holes | 6.181 |
| Notes | with spacers |
| Partn number | 3580-50 |
