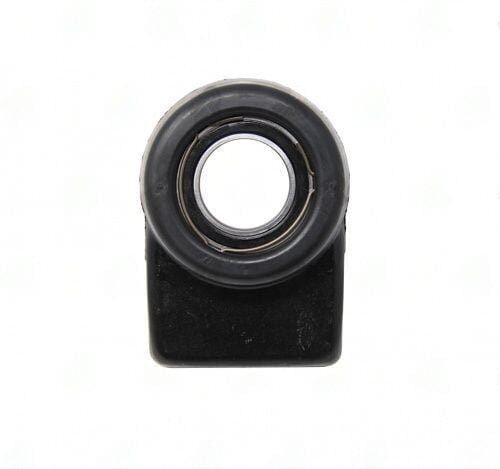

3R80-25 – 25 – Center Support Bearing – 1.574″ ID – 3.500″ Center Bearing To Base
$156.67
10 in stock
Description
Center support bearing with 1.574″ bore and 3.500″ center-to-base dimension; rubber-isolated ball bearing assembly for two-piece driveshaft systems.
Full Description
| SKU | 3R80-25 |
|---|---|
| Type | Center Support Bearing |
| Bore ID | 1.574" (40 mm) |
| Center to Base | 3.500" |
| Bracket Style | Rubber-isolated ball bearing assembly |
- The 40 mm bore must match the stub shaft OD exactly -- even 0.5 mm of clearance causes fretting and premature bearing failure
- Rubber isolator absorbs harmonic vibration from the driveshaft, reducing noise transmitted to the floor pan
- 3.500" center-to-base height -- verify against the crossmember hanger bracket before ordering
- Compatible with center support bearing housings using 40 mm inner ring diameter
When replacing the 3R80-25, check the stub shaft for wear at the inner race contact zone. A worn shaft undersize by even 0.003" will allow the new bearing to spin on the journal, destroying it within miles. Neapco cross-reference: check P/N 2-3049 series for equivalent mount geometry.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 3.500 |
| Ctr to ctr of mount holes | 2.250 |
| Notes | Cadillac Buick |
| Partn number | 3R80-25 |
