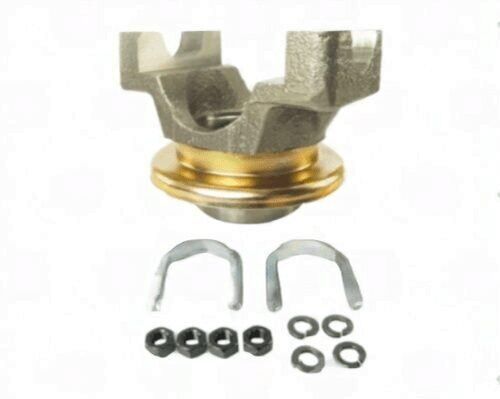

3R04-271 – End Yoke – 1.170″ Splines Dia – 1.942″ Hub Dia – 27 Spline
$125.66
1 in stock
15 People watching this product now!
Description
3R04-271 end yoke, 3R series. 1.170″ x 27 spline | 1.942″ hub dia | 2.866″ CJ-to-end | 1.287 bore. Splined bore — verify count and diameter before ordering.
Full Description
Correct end yoke installation means the splines engage fully and the snap ring or nut seats solidly. The 3R04-271 end yoke is machined to that exact shaft spec.
3R04-271 End Yoke Specifications & Series
The 3R04-271 end yoke -- 1.170" x 27 spline | 1.942" hub dia | 2.866" CJ-to-end | 1.287 bore. GM 8.2 : BUICK, OLDSMOBILE & PONTIAC.
The 3R series is the standard for metric 3-bolt flange applications -- European and import platforms. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 3R -- metric 3-bolt flange applications -- European and import platforms
- Spline: 1.170" x 27 -- must match axle/T-case shaft exactly
- Hub dia: 1.942" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 2.866" -- affects driveshaft working length and angle
- Bore: 1.287 -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: GM 8.2 : BUICK, OLDSMOBILE & PONTIAC
Specifications
- SKU: 3R04-271
- Brand: UDS
- Series: 3R
- Spline Dia: 1.170"
- Spline Count: 27
- Hub Dia: 1.942"
- CJ to End: 2.866"
- Through Hole: 1.287
- Style: UB
- Notes: GM 8.2 : BUICK, OLDSMOBILE & PONTIAC
Additional information
| Cj to end | 2.866 |
|---|---|
| Hub dia | 1.942 |
| Notes | GM 8.2 : BUICK, OLDSMOBILE & PONTIAC |
| Partn number | 3R04-271 |
| Series | 3R |
| Splines count | 27 |
| Splines dia | 1.170" |
| Style | UB |
| Through hole | 1.287 |
