3R04-03 – End Yoke – 3R Series – 1.312″ Splines Dia – 2.110″ Hub Dia
$138.80
1 in stock
Description

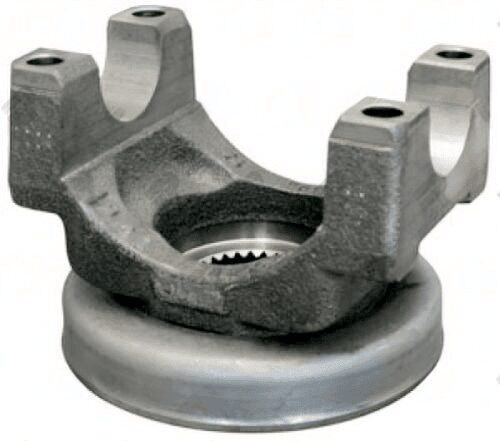

3R04-03 — 3R Series end yoke with 1.312-inch spline bore, 2.110-inch hub, and BS snap ring retention. Drop-in replacement for 3R Series output shafts — GM 8.6.
Full Description
3R04-03 is a UDS 3R Series end yoke. Spline diameter: 1.312". Spline count: 30. Hub diameter: 2.110". Retention style: BS. This is the replacement specification for 3R Series output shafts in GM 8.6 applications. If your numbers match, this is your part.
Engineering Specifications
All dimensions are as-machined. Match each to your output shaft before ordering. No modification required for correct-fit installations.
| Specification | Value |
|---|---|
| Series | 3R Series |
| Spline Diameter | 1.312" |
| Spline Count | 30 |
| Hub Diameter | 2.110" |
| Center U-Joint to End | 3.375" |
| Through Hole Diameter | 1.150" |
| Snap Ring Style | BS |
| Application Note | GM 8.6 |
| Brand | UDS |
Snap Ring and Retention Detail
The BS retention system on this yoke uses a standard snap ring seated in the output shaft groove. The groove geometry dictates which snap ring style is required -- do not substitute ISR hardware in an OSR groove or vice versa. Snap ring ejection under load is a catastrophic failure mode that can damage adjacent driveline components.
Through bore ID: 1.150" -- required clearance dimension for applications with internal shafts.
Ordering and Cross-Reference
Part number 3R04-03 corresponds to UDS part number 3R04-03. Application: GM 8.6 Cross-reference against your existing yoke OEM part number to confirm compatibility before placing an order.
This yoke is stocked at Universal Driveshafts and ships the same business day when ordered before the daily cutoff. Combine with a 3R Series U-joint for a complete output shaft service kit.
Part 3R04-03 is a UDS product. Universal Driveshafts stocks a complete range of 3R Series end yokes, U-joints, and driveshaft components. Contact our technical team for fitment assistance.
Additional information
| Cj to end | 3.375″ |
|---|---|
| Hub dia | 2.110″ |
| Notes | GM 8.6, STRAP PART NUMBER: 2-70-48X |
| Partn number | 3R04-03 |
| Series | 3R |
| Splines count | 30 |
| Splines dia | 1.312 |
| Style | BS |
| Through hole | 1.150″ |
