3R04-02 – End Yoke – 3R Series – 1.312″ splines dia – 1.940″ Hub Dia”,
$103.50
1 in stock
19 People watching this product now!
Description
3R04-02 end yoke, 3R series. 1.312 x 30 spline | 1.940″” hub dia | 3.375″ CJ-to-end | 1.150″ bore. Splined bore — verify count and diameter before ordering.
Full Description

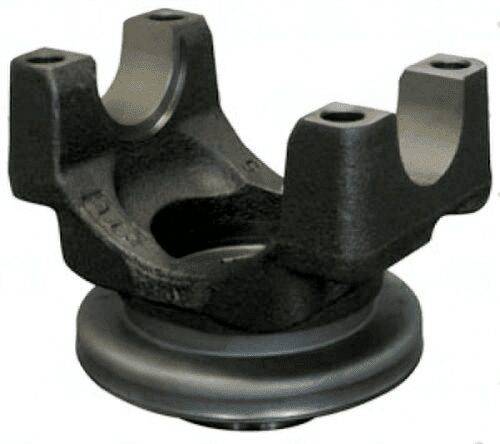

The 3R04-02 end yoke slides onto the axle or transfer case output shaft, locking onto the splines and becoming the u-joint cradle at that end of the driveshaft.
3R04-02 End Yoke -- 3R Series Spline & Fitment
The 3R series is the standard for metric 3-bolt flange applications -- European and import platforms. The 3R04-02 end yoke specs: 1.312 x 30 spline | 1.940"" hub dia | 3.375" CJ-to-end | 1.150" bore. Note: GM 8.5 & 9.25.
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 3R -- metric 3-bolt flange applications -- European and import platforms
- Spline: 1.312 x 30 -- must match axle/T-case shaft exactly
- Hub dia: 1.940"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.375" -- affects driveshaft working length and angle
- Bore: 1.150" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: GM 8.5 & 9.25
Specifications
- SKU: 3R04-02
- Brand: UDS
- Series: 3R
- Spline Dia: 1.312
- Spline Count: 30
- Hub Dia: 1.940""
- CJ to End: 3.375"
- Through Hole: 1.150"
- Style: BS
- Notes: GM 8.5 & 9.25
Additional information
| Cj to end | 3.375 |
|---|---|
| Hub dia | 1.940" |
| Notes | GM 8.5 & 9.25 ,STRAP PART NUMBER: 2-70-48X |
| Partn number | 3R04-02 |
| Series | 3R |
| Splines count | 30 |
| Splines dia | 1.312 |
| Style | BS |
| Through hole | 1.150" |
