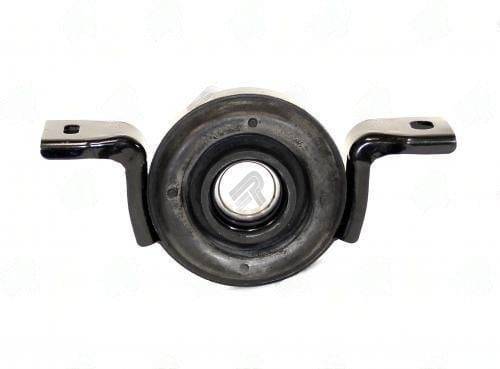

3680-15 – Center Support Bearing – Gm Application – 1.181″ ID – 2.625″ Center Bearing To Base
$91.70
10 in stock
Description
GM application center support bearing with 1.181″ bore and 2.625″ center-to-base height; tall rubber-isolated ball bearing assembly for GM two-piece driveshaft elevated hanger positions.
Full Description
- SKU
- 3680-15
- Application
- GM (various -- confirm by VIN)
- Bore ID
- 1.181" (30 mm)
- Center to Base
- 2.625"
- Type
- Rubber-isolated center support bearing
- OEM Cross-Reference
- GM part numbers in the 22800834 and 88951975 families
Application notes: the 3680-15 at 2.625" is among the taller GM 30 mm bore center bearing assemblies. This height is typical of GM fullsize car and some SUV applications where the propshaft routes below a deeply recessed tunnel crossmember. One verification warning: the 2.625" height is close to the 2.500" and 3.000" dimensions used in other applications -- always verify the exact removed-bearing height before ordering, as any mismatch changes the propshaft driveline angle and produces vibration that is very difficult to diagnose without knowing the root cause.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.625 |
| Ctr to ctr of mount holes | 7.500 |
| Notes | Chevy Equinox / Pontiac Torrent / GMC Terrain |
| Partn number | 3680-15 |
