3680-10 Center Support Bearing Cadillac CTS 2003-2007 / STS 2005-2011 | 88951975
$37.99
29 in stock
Description

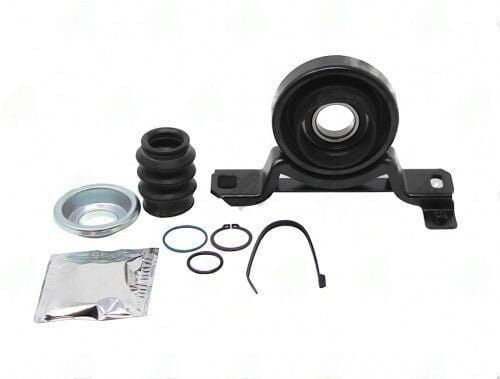

Cadillac CTS 2003-2007 and STS 2005-2011 center support bearing; OEM cross-reference 88951975; 1.181″ bore rubber-isolated assembly for two-piece propshaft hanger.
Full Description
3680-10 -- Cadillac CTS (2003--2007) and STS (2005--2011) Center Support Bearing
The 3680-10 directly cross-references GM OEM part number 88951975, covering the Cadillac CTS from 2003 to 2007 and the STS from 2005 to 2011. Both models use a rear-wheel-drive two-piece propshaft with a center bearing mounted to the floor tunnel crossmember, and both share the 30 mm (1.181") stub shaft journal dimension.
A specification detail relevant to these Cadillac applications: the 2003--2007 CTS and 2005--2011 STS are known for premature center support bearing failure when the vehicle is operated on rough surfaces for extended periods. The propshaft center bearing on these platforms sees significant axial loading during abrupt direction changes at low speed -- the rubber isolator absorbs this load but degrades faster than in highway-only use. For fleet or urban service, plan to inspect the center bearing at 60,000-mile intervals. GM OEM 88951975 is the confirmed OEM number for both applications.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.625 |
| Ctr to ctr of mount holes | 6.875 |
| Notes | 03-07 Cadillac CTS |
| Partn number | 3680-10 |
