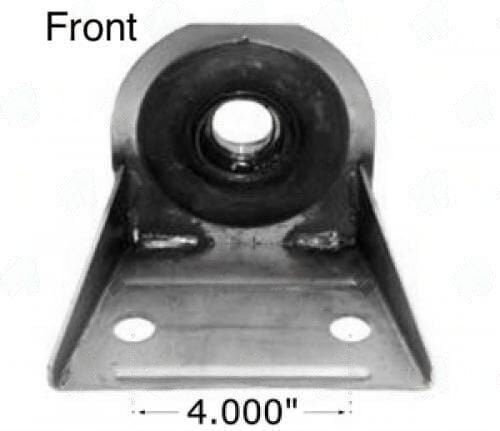

3180-50 – Center Support Bearing – Mercedes Application – 1.181″ ID – 2.375″ Center Bearing To Base
$88.29
5 in stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 2.375″ center-to-base height; rubber-isolated assembly for Mercedes two-piece propshaft mid-span hanger.
Full Description
- SKU
- 3180-50
- Application
- Mercedes-Benz (confirm via chassis code)
- Bore ID
- 1.181" (30 mm)
- Center to Base
- 2.375"
- Type
- Rubber-isolated center support bearing
- OEM Cross-Reference
- Mercedes-Benz part numbers in the A 202 and A 210 series depending on model
Application notes: Mercedes-Benz uses 30 mm propshaft stub shaft journals on a range of passenger car and small van configurations. The 3180-50 at 2.375" center-to-base height covers applications where the tunnel crossmember bracket requires this drop -- more common on larger Mercedes sedan and wagon models than on compact class vehicles. Mercedes propshaft center bearings incorporate a specific snap ring groove on the stub shaft; after installation, confirm the retaining ring is fully seated in the groove on the inboard side of the bearing inner race. A snap ring that is not fully seated allows axial propshaft movement under acceleration, felt as a clunk from the tunnel area.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.375 |
| Ctr to ctr of mount holes | 4.000 |
| Notes | Bracket width goes from 5″ to 6.7″ |
| Partn number | 3180-50 |
