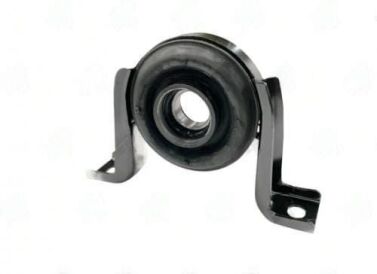

3680-11 – Center Support Bearing – Gm Application – 1.181″ ID – 3.300″ Center Bearing To Base
$59.72
10 in stock
Description
GM application center support bearing with 1.181″ bore and 3.300″ center-to-base height; tall rubber-isolated ball bearing for GM two-piece driveshaft elevated crossmember hanger.
Full Description
| SKU | 3680-11 |
|---|---|
| Application | GM (confirm via VIN) |
| Bore ID | 1.181" (30 mm) |
| Center to Base | 3.300" |
| Type | Rubber-isolated center support bearing |
- 3.300" center-to-base -- one of the tallest GM 30 mm bore assemblies; verify against the removed bearing before ordering
- Used on GM body-on-frame applications where the crossmember drops significantly below the frame before reaching the driveshaft axis
- Tall bracket arm: tighten fasteners to the factory torque spec and retorque after first 100 miles due to bracket settling
- GM OEM cross-references in the 22800834 and 88951975 series; confirm via VIN and GMPD catalog
Warning: after installing a 3.300" tall center bearing, verify the driveshaft-to-bracket clearance at full suspension droop with the vehicle on a lift and suspension hanging freely. The long bracket arm can contact the exhaust or floor pan at full droop if the driveshaft operating angle is increased by a suspension lift or modification.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 3.300 |
| Ctr to ctr of mount holes | 7.125 |
| Notes | Acadia, Traverse, Enclave |
| Partn number | 3680-11 |
