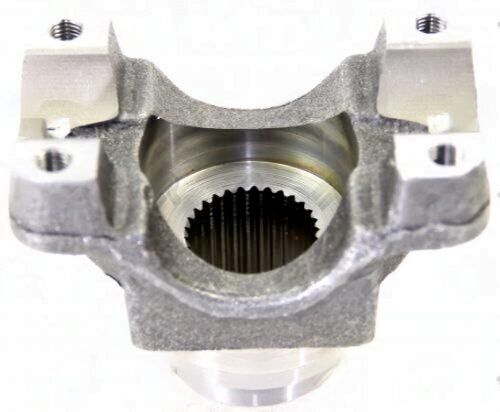

3504-291 – End Yoke – 1.276″ Splines Dia – 1.710″ Hub Dia – 1350 Series”,
$94.45
1 in stock
Description
3504-291 — 1350 Series end yoke with 1.276-inch spline bore, 1.710-inch hub, and BS snap ring retention. Drop-in replacement for 1350 Series output shafts — NUT: 16-74-101.
Full Description
When comparing aftermarket end yokes, what matters is dimensional precision and material consistency -- not packaging or price point. The 3504-291 from UDS is built to the 1350 Series OEM specification: 1.276" spline bore, 1.710" hub diameter, and BS snap ring retention. These numbers are non-negotiable -- they either match your output shaft or they don't.
OEM vs. Aftermarket: What Changes
OEM end yokes are manufactured to tight tolerances with controlled heat treatment for the specific vehicle model. The UDS 3504-291 replicates these tolerances in an aftermarket context, using the same 1350 Series dimensional standard that OEM suppliers use. The practical difference is availability: this part ships from Universal Driveshafts' inventory, while OEM sources may require dealer ordering with extended lead times.
- Spline interface: 1.276" x 29 splines -- matches OEM output shaft
- Snap ring type: BS -- same retention method as factory
- Hub diameter: 1.710" -- registers against factory seal bore
- Note: NUT: 16-74-101
| Specification | Value |
|---|---|
| Series | 1350 Series |
| Spline Diameter | 1.276" |
| Spline Count | 29 |
| Hub Diameter | 1.710" |
| Center U-Joint to End | 3.188" |
| Through Hole Diameter | 1.500" |
| Snap Ring Style | BS |
| Application Note | NUT: 16-74-101 |
| Brand | UDS |
Specification Table
Full dimensional data for the 3504-291. Every measurement is an as-machined figure, not a nominal or nominal +/- value.
Selecting the Correct Part
The most common ordering error for end yokes is confusing similar-sounding series numbers or assuming that all yokes for a given vehicle are interchangeable. Verify these specifics before ordering the 3504-291: output shaft spline diameter must be 1.276", spline count must be 29, and the shaft's snap ring groove must match the BS style. Through bore clearance (1.500") is especially important if your application routes a cable or shaft through the output yoke bore.
Part 3504-291 is a UDS product. Universal Driveshafts stocks a complete range of 1350 Series end yokes, U-joints, and driveshaft components. Contact our technical team for fitment assistance.
Additional information
| Cj to end | 3.188 |
|---|---|
| Hub dia | 1.710″ |
| Notes | NUT: 16-74-101, STRAP: 3-70-28, STUB: 3153-291 |
| Partn number | 3504-291 |
| Series | 1350 |
| Splines count | 29 |
| Splines dia | 1.276 |
| Style | BS |
| Through hole | 1.500″ |
