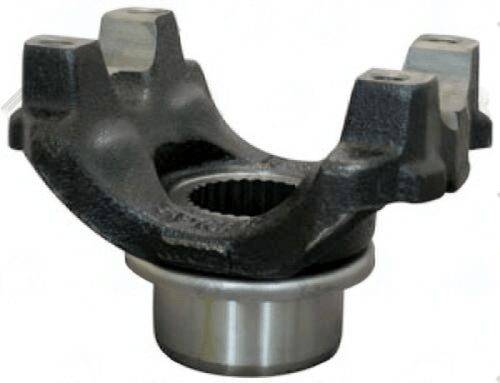

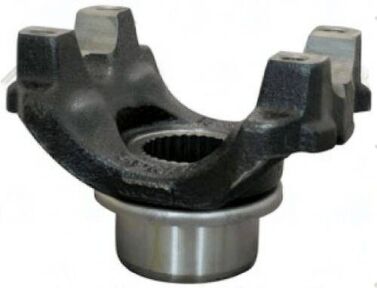

3504-01 – End Yoke – 1350 Series – 1.276″ Splines Dia – 1.875″ Hub Dia”,
$116.77
1 in stock
10 People watching this product now!
Description
1350 series 3504-01 end yoke. 1.276 x 29 spline | 1.875″ hub dia | 3.000″” CJ-to-end | 1.500″ bore. BS retention. Direct swap for axle or T-case output.
Full Description
Spline count and diameter aren't suggestions -- they're the spec. The 3504-01 end yoke is bored and splined to one shaft dimension. Match it exactly.
3504-01 End Yoke Specifications & Series
The 3504-01 end yoke -- 1.276 x 29 spline | 1.875" hub dia | 3.000"" CJ-to-end | 1.500" bore. DANA 60 AND 70.
The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds. Count the splines on your shaft. If the shaft was replaced or the axle swapped, the spline count may not match the original.
Key Features
- Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
- Spline: 1.276 x 29 -- must match axle/T-case shaft exactly
- Hub dia: 1.875" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.000"" -- affects driveshaft working length and angle
- Bore: 1.500" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: DANA 60 AND 70
Specifications
- SKU: 3504-01
- Brand: UDS
- Series: 1350
- Spline Dia: 1.276
- Spline Count: 29
- Hub Dia: 1.875"
- CJ to End: 3.000""
- Through Hole: 1.500"
- Style: BS
- Notes: DANA 60 AND 70
Additional information
| Cj to end | 3.000" |
|---|---|
| Hub dia | 1.875 |
| Notes | DANA 60 AND 70 ,STRAP PART NUMBER: 3-70-28 |
| Partn number | 3504-01 |
| Series | 1350 |
| Splines count | 29 |
| Splines dia | 1.276 |
| Style | BS |
| Through hole | 1.500" |
