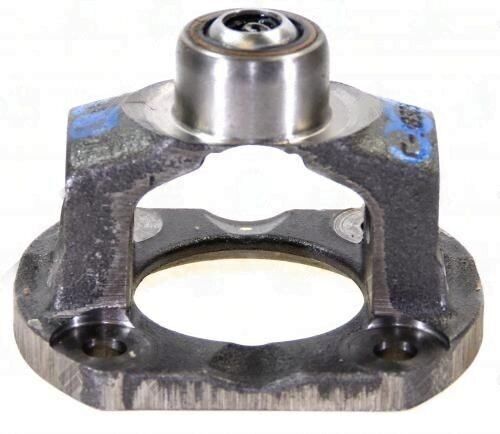

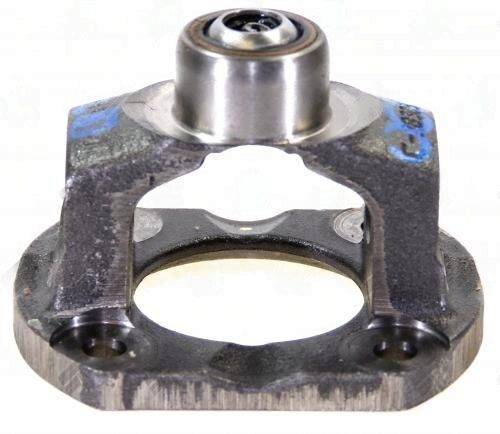

3502-312CV CV Flange Yoke 1350 Fits 3R APP 4.250 Bolt Circle Dia 3-83-3281X
$78.96
50 in stock
19 People watching this product now!
Description
3502-312CV UDS 1350 flange yoke. -hole, 4.25″ bolt circle, 3.125″ pilot, ” CJ-to-face. Verify bolt circle and pilot before ordering.
Full Description
3502-312CV UDS 1350 Flange Yoke
The 3502-312CV is a 1350 series flange yoke manufactured by UDS. It bolts to a companion flange on the transmission, transfer case, or differential output using a -bolt pattern on a 4.25-inch bolt circle. The 3.125-inch pilot diameter registers the yoke concentrically against the companion flange to minimize runout.
The bolt holes are 465-inch diameter on the 4.25-inch bolt circle. The center-U-joint-to-flange-face dimension is inches. This 1350 series yoke accepts a 1350 U-joint in the yoke ears — the ear bore is machined specifically for the 1350 cap diameter. Application note: Fits 3R Saginaw applications. The 1350 series ranks above 1330 in torque capacity, with a 1.188-inch cap diameter, suited for 3/4-ton and 1-ton trucks, common in Ford Super Duty, GM 2500/3500, and Ram 2500/3500 applications.
Specifications
- Part Number: 3502-312CV
- Brand: UDS
- Series: 1350
- Ball stud dia: 0.5
- Bolt circle dia: 4.25
- Bolt hole dia: 465
- C l to face: 1.625
- Class: LD
- Notes: Fits 3R Saginaw applications
- Pilot dia: 3.125
- Pilot type: F
Fitment & Installation Notes
Before ordering the 3502-312CV, measure the bolt circle diameter and pilot diameter on the companion flange. The bolt circle (4.25") and pilot (3.125") must match exactly. A 1350 U-joint is required — do not install a different-series joint in these ears.
Browse the complete CV Flange Yokes catalog including circular and rectangular bolt patterns across 1350 and adjacent series.
Additional information
| Ball stud dia | 0.5 |
|---|---|
| Bolt circle dia | 4.25 |
| Bolt hole dia | 465 |
| Brand | UDS |
| C l to face | 1.625 |
| Class | LD |
| Notes | Fits 3R Saginaw applications |
| Partn number | 3502-312CV |
| Pilot dia | 3.125 |
| Pilot type | F |
| Series | 1350 |
