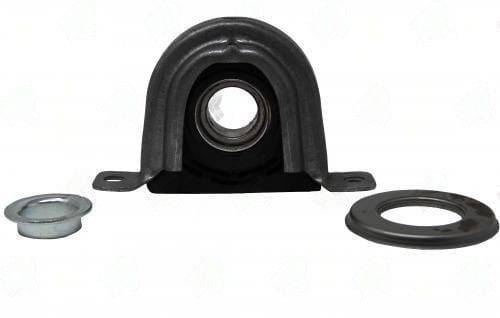

3380-10 – Center Support Bearing – 1310/1330 Series – 1.378″ ID – 2.250″ Center Bearing To Base
$47.69
2 in stock
Description
1310/1330 series center support bearing with 1.378″ bore and 2.250″ center-to-base height; standard rubber-isolated assembly for light-duty two-piece driveshaft hanger positions.
Full Description
- SKU
- 3380-10
- Series
- 1310/1330 (shared 1.062" U-joint cap diameter)
- Bore ID
- 1.378" (35 mm)
- Center to Base
- 2.250"
- Type
- Rubber-isolated center support bearing
- Cross-References
- Spicer 2-26-187, Neapco 2-3049 equivalents
Application notes: The 3380-10 covers 1310 and 1330 series two-piece driveshaft applications where the stub shaft journal measures 35 mm. Both series use the same 1.062" U-joint cap diameter -- the 1330 is simply a wider-trunnion version of the 1310 providing marginally higher angle capability. The 2.250" center-to-base dimension is the domestic light truck standard. Verify that the removed bearing matches this height before ordering; even 0.125" of height difference changes the driveshaft angle enough to produce harmonic vibration at 55--70 mph.
Additional information
| Application | 1310, 1330, 1350 |
|---|---|
| Bearing id | 1.378 |
| Center bearing to base | 2.250 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Ford, Chevy w/rubber backing / double bracket housing |
| Partn number | 3380-10 |
