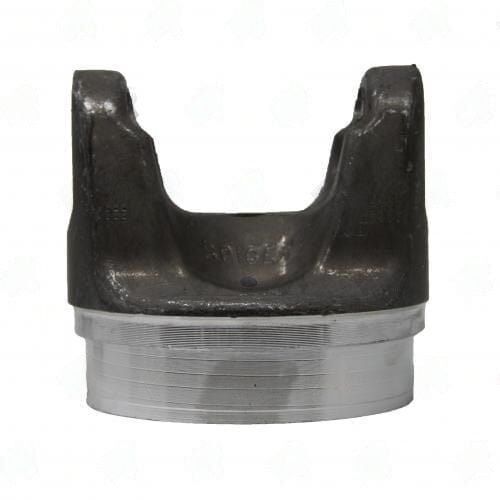

3326-406A – Weld Yokes – 1330 Series – Butt Dia 3.757″ – Tube Dia Wall 4.000X0.125
$64.02
12
People watching this product now!
Description
Weld yoke 3326-406A, 1330. fits 4.000X0.125 tube | 3.757″ butt dia | 2.250″” center-to-weld. Tube OD must match butt diameter.
Full Description
If the driveshaft tube is fine but the yoke is cracked or corroded, cutting and replacing just the 3326-406A weld yoke is the right call.
3326-406A Weld Yoke -- Dimensions & Fitment
The 3326-406A weld yoke: fits 4.000X0.125 tube | 3.757" butt dia | 2.250"" center-to-weld.
The 1330 series is the standard for light-to-medium duty GM half-ton and Dodge Dakota platforms. Aluminum T6061 construction -- lighter rotating mass reduces driveline stress. Center-to-weld dimension determines how much of your total shaft length is consumed by this end.
Key Features
- Series: 1330 -- light-to-medium duty GM half-ton and Dodge Dakota platforms
- Tube fit: 4.000X0.125 -- butt diameter machined to this tube OD only
- Butt diameter: 3.757" -- slides over tube OD for weld prep
- Center-to-weld: 2.250"" -- factors into overall driveshaft length calculation
- Aluminum T6061 -- roughly 60% lighter than steel equivalent, corrosion resistant
Specifications
- SKU: 3326-406A
- Brand: UDS
- Series: 1330
- Material: Aluminum
- Tube Dia x Wall: 4.000X0.125
- Butt Dia: 3.757"
- Center UJ to Weld: 2.250""
Additional information
| Butt dia |
3.757 |
|---|---|
| Center u j to weld |
2.250" |
| Material |
ALUMINUM |
| Partn number |
3326-406A |
| Series |
1330 |
| Tube dia wall |
4.000X0.125 |
| Brand |
UDS |
