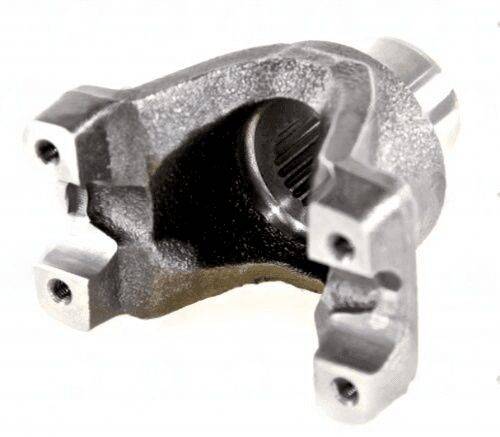

3304-263 – End Yoke – 1330 Series – 1.146″ Splines Dia – 1.552″ Hub Dia
$108.25
2 in stock
Description
3304-263 — 1330 Series end yoke with 1.146-inch spline bore, 1.552-inch hub, and BS snap ring retention. Drop-in replacement for 1330 Series output shafts — COUNTERBORE SPLINES FOR MIDSHIP STUB CLEARANCE.
Full Description
The 3304-263 end yoke from UDS is defined by its precise dimensional stack: 1.146-inch spline diameter, 1.552-inch hub, and a center-U-joint-to-end measurement of 3.750". These numbers must match your output shaft exactly -- a fraction of an inch off means the yoke will not fit or will fail prematurely.
Full Specification Breakdown
Selecting this yoke requires cross-checking every dimension against your application. The specifications below represent the actual machined dimensions, not nominal values. Measure your existing yoke or output shaft before ordering.
| Specification | Value |
|---|---|
| Series | 1330 Series |
| Spline Diameter | 1.146" |
| Spline Count | 26 |
| Hub Diameter | 1.552" |
| Center U-Joint to End | 3.750" |
| Through Hole Diameter | 1.500" |
| Snap Ring Style | BS |
| Application Note | COUNTERBORE SPLINES FOR MIDSHIP STUB CLEARANCE |
| Brand | UDS |
Snap Ring and Retention System
This yoke uses a BS design, which dictates the U-joint cap retention method. 1330 Series applications overwhelmingly use this style due to its serviceability and load rating. When replacing a worn yoke, the snap ring style must be preserved -- mixing OSR and ISR yokes with mismatched U-joints leads to cap ejection under torque.
- Retention style: BS
- Through bore ID: 1.500" -- critical for shaft clearance
- Hub OD: 1.552" -- registers against companion flange or seal bore
- Application notes: COUNTERBORE SPLINES FOR MIDSHIP STUB CLEARANCE
Why Dimensional Accuracy Matters
In driveshaft engineering, yoke geometry directly controls phasing, balance, and operating angles. A yoke with oversized spline bores will develop rotational slop that amplifies vibration at highway speed. Undersized bores damage output shaft splines during installation. The 3304-263 is manufactured to match the 1330 Series standard, which is also the OEM specification for the vehicles in this application class.
For high-torque applications -- diesel pickups, off-road builds, and towing rigs -- always upgrade to a forged yoke in the appropriate series rather than reusing worn stock components.
Part 3304-263 is a UDS product. Universal Driveshafts stocks a complete range of 1330 Series end yokes, U-joints, and driveshaft components. Contact our technical team for fitment assistance.
Alternative parts:
Additional information
| Cj to end | 3.750″ |
|---|---|
| Hub dia | 1.552 |
| Notes | COUNTERBORE SPLINES FOR MIDSHIP STUB CLEARANCE |
| Partn number | 3304-263 |
| Series | 1330 |
| Splines count | 26 |
| Splines dia | 1.146 |
| Style | BS |
| Through hole | 1.500″ |
