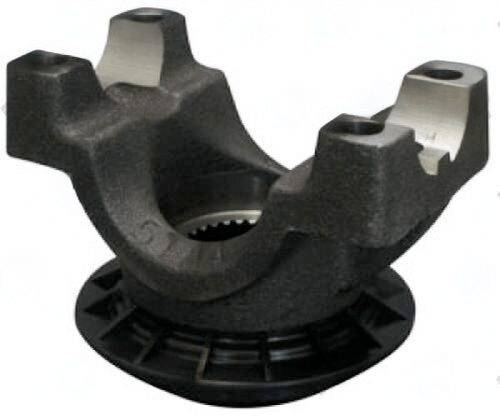

3304-07 – End Yoke – 1330F Series – 1.343″ Splines Dia – 1.812″ Hub Dia

Every driveshaft system is only as strong as its weakest yoke. The 3304-07 is a UDS 1330F Series end yoke built to handle the torsional demands of performance applications -- from high-horsepower street builds to off-road rigs that flex the suspension to its limits. With a 1.343" spline interface and precision-machined bearing seats, this yoke transfers power cleanly without the slop that kills U-joints prematurely.

Performance-Grade Construction

The 1330F Series yoke series was developed to handle loads beyond light-duty OEM specifications. The 3304-07 carries the full load rating of the 1330F Series system, making it appropriate for high-torque applications including turbocharged and supercharged drivetrains, towing configurations, and competition use.

• Full 1330F Series torque rating -- no derating for special applications
• Precision bearing bores -- eliminate U-joint cap rocking that causes premature wear
• Snap ring style: UB -- positive retention under shock loading
• Hub diameter: 1.812" -- correct registration against diff or transfer case seal

Specifications

Performance fitment requires exact dimensional matching. The 3304-07 is built to the following specs -- particularly relevant for FORD 10.25:

Pairing for Maximum Drivetrain Life

The weakest link in any driveshaft assembly determines its service life. Pairing a fresh 3304-07 end yoke with a new 1330F Series U-joint and a properly balanced driveshaft eliminates the three most common failure points. For high-horsepower builds, also inspect the driveshaft tube for straightness and the slip yoke for wear -- replacing a yoke without addressing these components leaves the system vulnerable to the same vibration-induced failure.

Center-to-end measurement of 3.150" must be accounted for when calculating driveshaft operating length after suspension lifts or drivetrain swaps.

Part 3304-07 is a UDS product. Universal Driveshafts stocks a complete range of 1330F Series end yokes, U-joints, and driveshaft components. Contact our technical team for fitment assistance.
