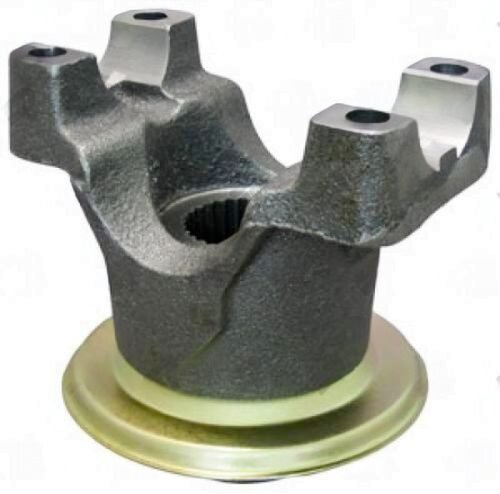

3304-06 – End Yoke – 1330F Series – 1.218″ Splines Dia – 1.812″ Hub Dia
$100.16
1 in stock
17
People watching this product now!
Description
3304-06 End Yoke — 1330F series, 1.218 x 28 spline | 1.812″ hub dia | 4.000″” CJ-to-end | 2.425 bore. Complete replacement, spline-specific fit. Count splines before ordering.
Full Description
That clunk under acceleration that goes away when you grab the driveshaft and check for play — it's usually here, at the end yoke splines. The 3304-06 end yoke is the correct 1330F series replacement. Count the splines on your output shaft before ordering. Don't guess by series alone.
3304-06 End Yoke — Spline Specs & 1330F Series Fitment
The 3304-06 end yoke specs: 1.218 x 28 spline | 1.812" hub dia | 4.000"" CJ-to-end | 2.425 bore. FORD 9. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 3304-06 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 1330F — application-specific
- Spline: 1.218 x 28 — must match output shaft exactly
- Hub dia: 1.812" — outer dimension, verify clearance
- CJ-to-end: 4.000"" — positions u-joint relative to axle flange
- Bore: 2.425
- Style: UB
- Brand: UDS
- Note: FORD 9
Specifications
- SKU: 3304-06
- Brand: UDS
- Series: 1330F
- Spline Dia: 1.218
- Spline Count: 28
- Hub Dia: 1.812"
- CJ to End: 4.000""
- Through Hole: 2.425
- Style: UB
- Notes: FORD 9
Additional information
| Cj to end | 4.000″ |
|---|---|
| Hub dia | 1.812 |
| Notes | FORD 9, U BOLT PART NUMBER: 2-94-58X |
| Partn number | 3304-06 |
| Series | 1330F |
| Splines count | 28 |
| Splines dia | 1.218 |
| Style | UB |
| Through hole | 2.425 |
