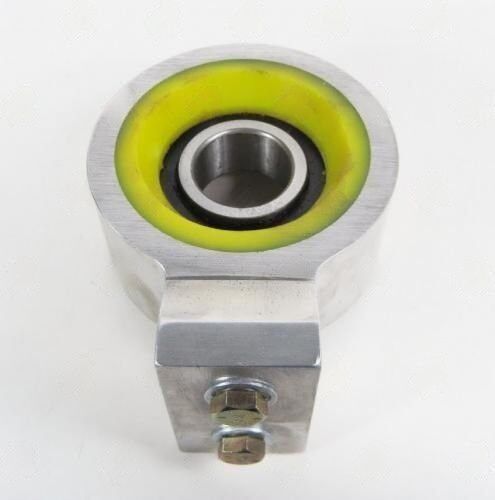

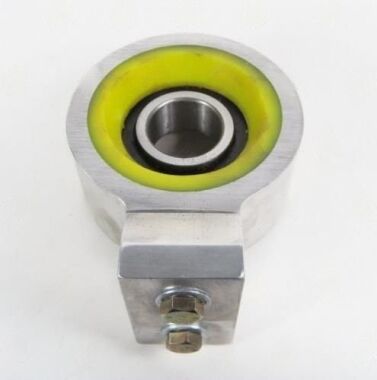

3180-46 – Center Support Bearing – 1310 Series – 1.378″ ID – 3.500″ Center Bearing To Base
$297.61
Out of stock
Description
1310 series center support bearing with 1.378″ bore and 3.500″ tall center-to-base height; rubber-isolated assembly for elevated crossmember hanger bracket positions.
Full Description
Q: Is the 3180-46 interchangeable with the 3180-47 which also has a 3.500" height?
A: The 3180-47 uses a 1.574" (40 mm) bore while the 3180-46 uses a 1.378" (35 mm) bore. Both have 3.500" center-to-base height, but they are not interchangeable -- the bore difference means they fit different stub shaft diameters. Always verify the stub shaft OD before selecting.
Q: Why does my truck need a 3.500" tall center support bearing instead of the standard 2.250"? A: Some truck platforms route the driveshaft well below the main frame rail crossmember, requiring a longer drop bracket to reach the bearing centerline. The 3.500" height accommodates this geometry. Using a short 2.250" bracket on this application places the bearing above the driveshaft centerline, angling the stub shaft downward and creating constant vibration.
Q: What torque should the bracket bolts be set to? A: Without an application-specific service manual value, 25--30 ft-lb (34--41 Nm) is typical for M10 bracket bolts on light-duty trucks with 1310-series driveshafts. Retorque after the first 500 miles on a new bearing installation.
Q: Why does my truck need a 3.500" tall center support bearing instead of the standard 2.250"? A: Some truck platforms route the driveshaft well below the main frame rail crossmember, requiring a longer drop bracket to reach the bearing centerline. The 3.500" height accommodates this geometry. Using a short 2.250" bracket on this application places the bearing above the driveshaft centerline, angling the stub shaft downward and creating constant vibration.
Q: What torque should the bracket bolts be set to? A: Without an application-specific service manual value, 25--30 ft-lb (34--41 Nm) is typical for M10 bracket bolts on light-duty trucks with 1310-series driveshafts. Retorque after the first 500 miles on a new bearing installation.
Additional information
| Application | 1310 |
|---|---|
| Bearing id | 1.378 |
| Center bearing to base | 3.500 |
| Ctr to ctr of mount holes | 1.500 |
| Notes | Chevrolet, Billet aluminum bracket w/ poly urethane |
| Partn number | 3180-46 |
