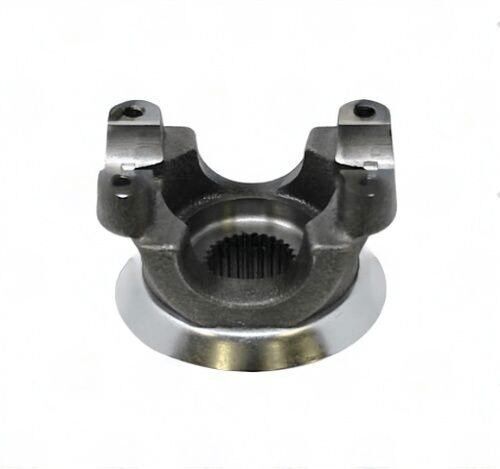

3104-27 – End Yoke – 1.172″ Splines Dia – 1.688″ Hub Dia
$76.54
1 in stock
15
People watching this product now!
Description
End yoke 3104-27, 1310. Specs: 1.172 x 27 spline | 1.688″ hub dia | 2.750″” CJ-to-end | 1.062 bore. CHRYSLER 7.25 & 8.25. Spline count and series must match.
Full Description
The 3104-27 end yoke mates with the axle output shaft via splined bore -- pull the old one, verify the spline count and series, press the new one on.
3104-27 End Yoke -- 1310 Series Spline & Fitment
The 1310 series is the standard for light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500.
Dimensions on the 3104-27 end yoke: 1.172 x 27 spline | 1.688" hub dia | 2.750"" CJ-to-end | 1.062 bore. CHRYSLER 7.25 & 8.25. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1310 -- light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: 1.172 x 27 -- must match axle/T-case shaft exactly
- Hub dia: 1.688" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 2.750"" -- affects driveshaft working length and angle
- Bore: 1.062 -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: CHRYSLER 7.25 & 8.25
Specifications
- SKU: 3104-27
- Brand: UDS
- Series: 1310
- Spline Dia: 1.172
- Spline Count: 27
- Hub Dia: 1.688"
- CJ to End: 2.750""
- Through Hole: 1.062
- Style: BS
- Notes: CHRYSLER 7.25 & 8.25
Additional information
| Cj to end |
2.750" |
|---|---|
| Hub dia |
1.688 |
| Notes |
CHRYSLER 7.25 & 8.25 ,STRAP PART NUMBER: 2-70-18 |
| Partn number |
3104-27 |
| Series |
1310 |
| Splines count |
27 |
| Splines dia |
1.172 |
| Style |
BS |
| Through hole |
1.062 |
