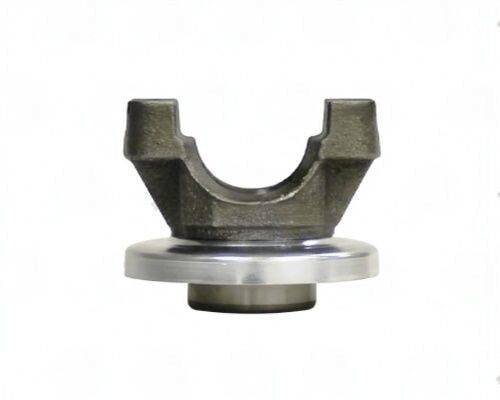

3104-242 – End Yoke – 1.250″ Splines Dia – 1.876″ Hub Dia – 24 Spline
$74.44
1 in stock
18 People watching this product now!
Description
1310 series 3104-242 end yoke. 1.250″ x 24 spline | 1.876″ hub dia | 3.000″” CJ-to-end | 1.500″ bore. UB retention. Direct swap for axle or T-case output.
Full Description
End yoke failures are usually visible: worn splines, cracked ears, or corrosion at the cap bores. The 3104-242 is the correct 1310 series replacement.
3104-242 End Yoke -- 1310 Series Spline & Fitment
The 1310 series is the standard for light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500.
Dimensions on the 3104-242 end yoke: 1.250" x 24 spline | 1.876" hub dia | 3.000"" CJ-to-end | 1.500" bore. 07+ JEEP JK FOR DIFFERENTIAL. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1310 -- light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: 1.250" x 24 -- must match axle/T-case shaft exactly
- Hub dia: 1.876" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.000"" -- affects driveshaft working length and angle
- Bore: 1.500" -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: 07+ JEEP JK FOR DIFFERENTIAL
Specifications
- SKU: 3104-242
- Brand: UDS
- Series: 1310
- Spline Dia: 1.250"
- Spline Count: 24
- Hub Dia: 1.876"
- CJ to End: 3.000""
- Through Hole: 1.500"
- Style: UB
- Notes: 07+ JEEP JK FOR DIFFERENTIAL
Additional information
| Cj to end | 3.000" |
|---|---|
| Hub dia | 1.876 |
| Notes | 07+ JEEP JK FOR DIFFERENTIAL |
| Partn number | 3104-242 |
| Series | 1310 |
| Splines count | 24 |
| Splines dia | 1.250" |
| Style | UB |
| Through hole | 1.500" |
