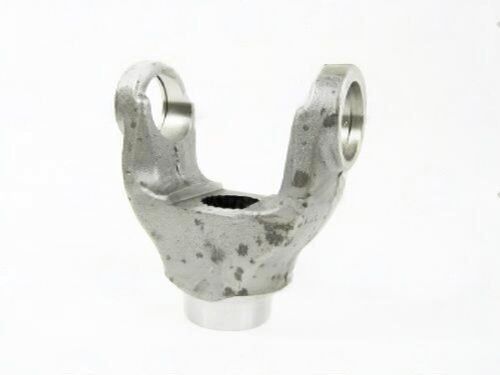

3004-231U – End Yoke – 1300 Series – 0.990″ Splines Dia – 1.420″ Hub Dia
$91.96
1 in stock
10 People watching this product now!
Description
3004-231U End Yoke — 1300 series, 0.990″ x 22/23 spline | 1.420″” hub dia | 3.250″” CJ-to-end | 1.800″ bore. Proven replacement, spline-specific fit. Count splines before ordering.
Full Description
The 3004-231U end yoke slides onto the axle or transfer case output shaft and holds the u-joint cross at the end of the driveshaft. It's a spline-specific fit for 1300 series applications — the spline count determines engagement, the hub diameter determines outer clearance, and the series determines which u-joint cross the ears accept.
3004-231U End Yoke — Spline Specs & 1300 Series Fitment
The 3004-231U end yoke specs: 0.990" x 22/23 spline | 1.420"" hub dia | 3.250"" CJ-to-end | 1.800" bore. FITS STUB: 1453-232 OR 3053-233. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface.
Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 3004-231U end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.
Key Features
- Series: 1300 — application-specific
- Spline: 0.990" x 22/23 — must match output shaft exactly
- Hub dia: 1.420"" — outer dimension, verify clearance
- CJ-to-end: 3.250"" — positions u-joint relative to axle flange
- Bore: 1.800"
- Style: SR
- Brand: UDS
- Note: FITS STUB: 1453-232 OR 3053-233
Specifications
- SKU: 3004-231U
- Brand: UDS
- Series: 1300
- Spline Dia: 0.990"
- Spline Count: 22/23
- Hub Dia: 1.420""
- CJ to End: 3.250""
- Through Hole: 1.800"
- Style: SR
- Notes: FITS STUB: 1453-232 OR 3053-233
Additional information
| Cj to end | 3.250″ |
|---|---|
| Hub dia | 1.420″ |
| Notes | FITS STUB: 1453-232 OR 3053-233 |
| Partn number | 3004-231U |
| Series | 1300 |
| Splines count | 22/23 |
| Splines dia | 0.990″ |
| Style | SR |
| Through hole | 1.800″ |
