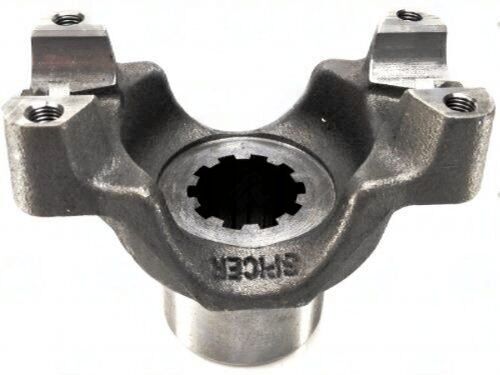

3-4-2271-1 – End Yoke – 1410 Series – 1.375″ Splines Dia – 2.125″ Hub Dia
$89.94
1 in stock
14 People watching this product now!
Description
3-4-2271-1 end yoke, 1410 series. 1.375 x 10 spline | 2.125″ hub dia | 3.685″ CJ-to-end | 2.000″ bore. Splined bore — verify count and diameter before ordering.
Full Description
Spline count and diameter aren't suggestions -- they're the spec. The 3-4-2271-1 end yoke is bored and splined to one shaft dimension. Match it exactly.
3-4-2271-1 End Yoke -- 1410 Series Spline & Fitment
The 1410 series is the standard for HD trucks -- F-250/350/450, Ram 2500/3500, Dana 60/70 axles.
Dimensions on the 3-4-2271-1 end yoke: 1.375 x 10 spline | 2.125" hub dia | 3.685" CJ-to-end | 2.000" bore. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1410 -- HD trucks -- F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Spline: 1.375 x 10 -- must match axle/T-case shaft exactly
- Hub dia: 2.125" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.685" -- affects driveshaft working length and angle
- Bore: 2.000" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
Specifications
- SKU: 3-4-2271-1
- Brand: UDS
- Series: 1410
- Spline Dia: 1.375
- Spline Count: 10
- Hub Dia: 2.125"
- CJ to End: 3.685"
- Through Hole: 2.000"
- Style: BS
Additional information
| Cj to end | 3.685 |
|---|---|
| Hub dia | 2.125 |
| Partn number | 3-4-2271-1 |
| Series | 1410 |
| Splines count | 10 |
| Splines dia | 1.375 |
| Style | BS |
| Through hole | 2.000" |
