Brand:

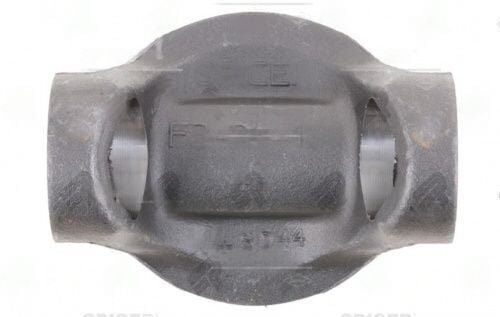

3-28-567 Weld Tube Yoke 1480 Series , Fits: 4.500 x 0.095 Tube , Butt Dia: 3.321 Centerline To Weld: 2.300 Inch
$32.92
24 in stock
19 People watching this product now!
Description
1480 series Steel 3-28-567 weld yoke. fits 3.500×0.095 tube | 3.321″ butt dia | 2.035″ center-to-weld. Weld-on tube end connection.
Full Description
Balance starts at the weld. The 3-28-567 weld yoke is machined concentric so the driveshaft doesn't introduce runout at the joint after welding.
3-28-567 Weld Yoke -- 1480 Series Steel Tube Specs
The 1480 series is the standard for heavy commercial Class 3-4 trucks and Dana heavy applications.
Dimensions on the 3-28-567 weld yoke: fits 3.500x0.095 tube | 3.321" butt dia | 2.035" center-to-weld. The center-to-weld measurement is critical for calculating your driveshaft's compressed and extended working length.
Steel DOM-compatible -- standard weld prep, full-penetration weld recommended.
Key Features
- Series: 1480 -- heavy commercial Class 3-4 trucks and Dana heavy applications
- Tube fit: 3.500x0.095 -- butt diameter machined to this tube OD only
- Butt diameter: 3.321" -- slides over tube OD for weld prep
- Center-to-weld: 2.035" -- factors into overall driveshaft length calculation
- Steel construction -- standard weld-compatible material
Specifications
- SKU: 3-28-567
- Brand: UDS
- Series: 1480
- Material: Steel
- Tube Dia x Wall: 3.500x0.095
- Butt Dia: 3.321"
- Center UJ to Weld: 2.035"
Additional information
| Butt dia | 3.321 |
|---|---|
| Center u j to weld | 2.035 |
| Material | STEEL |
| Partn number | 3-28-567 |
| Series | 1480 |
| Tube dia wall | 3.500×0.095 |
| Brand | UDS |
