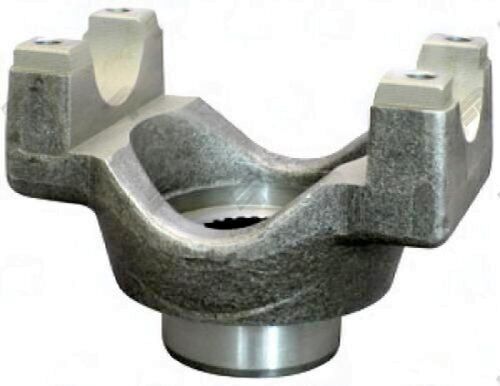

2904-27 – End Yoke – 7290 Series – 1.172″ Splines Dia – 1.688″ Hub Dia
$100.08
1 in stock
18
People watching this product now!
Description
2904-27 End Yoke — 7290 series, 1.172 x 27 spline | 1.688″ hub dia | 2.750″” CJ-to-end | 1.062 bore. Genuine replacement, spline-specific fit. Count splines before ordering.
Full Description
That clunk under acceleration that goes away when you grab the driveshaft and check for play — it's usually here, at the end yoke splines. The 2904-27 end yoke is the correct 7290 series replacement. Count the splines on your output shaft before ordering. Don't guess by series alone.
2904-27 End Yoke — Spline Specs & 7290 Series Fitment
The 2904-27 end yoke specs: 1.172 x 27 spline | 1.688" hub dia | 2.750"" CJ-to-end | 1.062 bore. CHRYSLER 7.25 AND 8.25. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 2904-27 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 7290 — application-specific
- Spline: 1.172 x 27 — must match output shaft exactly
- Hub dia: 1.688" — outer dimension, verify clearance
- CJ-to-end: 2.750"" — positions u-joint relative to axle flange
- Bore: 1.062
- Style: BS
- Brand: UDS
- Note: CHRYSLER 7.25 AND 8.25
Specifications
- SKU: 2904-27
- Brand: UDS
- Series: 7290
- Spline Dia: 1.172
- Spline Count: 27
- Hub Dia: 1.688"
- CJ to End: 2.750""
- Through Hole: 1.062
- Style: BS
- Notes: CHRYSLER 7.25 AND 8.25
Additional information
| Cj to end | 2.750″ |
|---|---|
| Hub dia | 1.688 |
| Notes | CHRYSLER 7.25 AND 8.25 |
| Partn number | 2904-27 |
| Series | 7290 |
| Splines count | 27 |
| Splines dia | 1.172 |
| Style | BS |
| Through hole | 1.062 |
